Rear Wheel Bearing & Hub Assembly 512496, 5-Lug with ABS, FWD, for 2013-2019 Ford Escape, 2013-2018 C-Max & 2015-2019 Lincoln MKC
Available in stock (20)

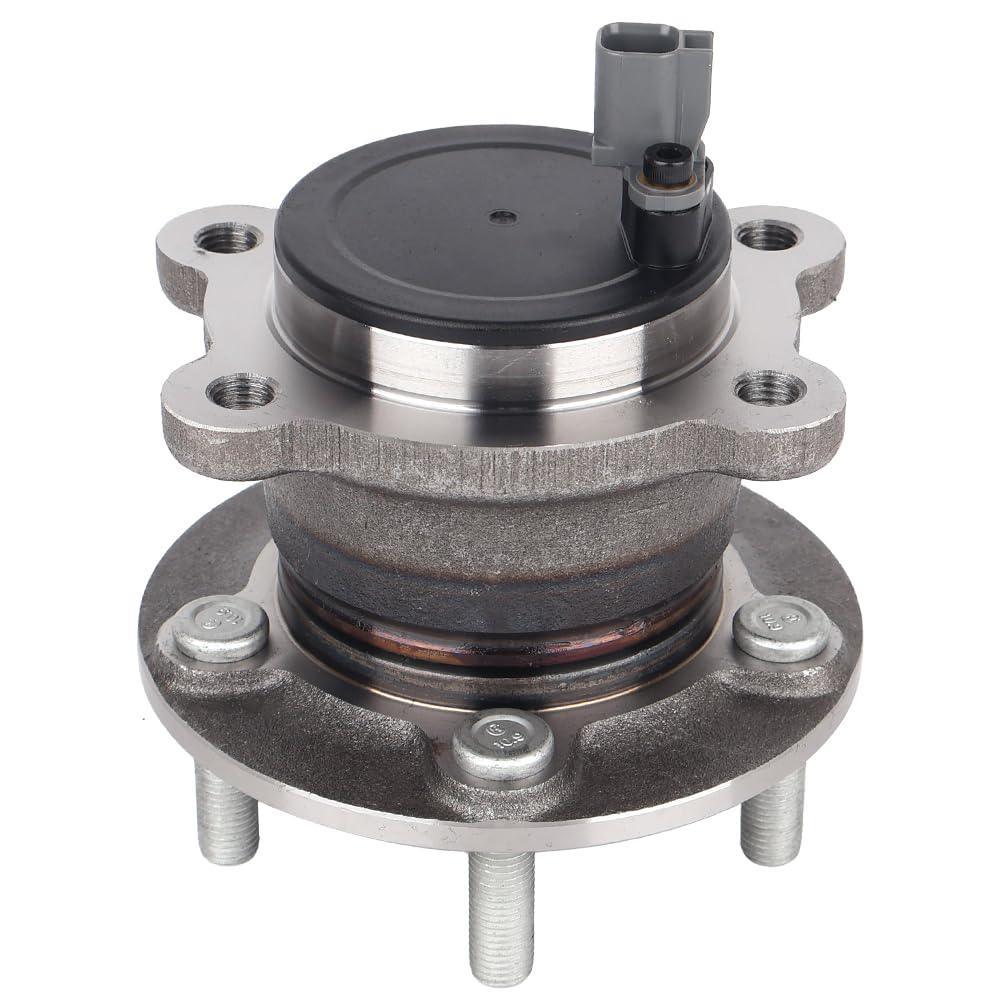

Rear Wheel Bearing & Hub Assembly 512496 for Ford Escape, C-Max & Lincoln MKC
A new rear wheel bearing and hub assembly with a 5-lug flange and ABS sensor, replacing part number 512496. It is quality tested to meet or exceed OEM performance standards.
Fitment
- Ford Escape, 2013-2019, FWD
- Ford C-Max, 2013-2018, with Parking Assist
- Lincoln MKC, 2015-2016
- Lincoln MKC, 2017-2018, Premiere and Black Label
- Lincoln MKC, 2019, FWD with Automated Parking System
- Position: Rear axle, fits left or right
- Not for: Escape AWD, other 2017-2018 MKC trims, or front axles
Fitment depends on drivetrain, trim and parking system. Confirm by VIN and compare your original hub before ordering.
Specifications
- Part type: Rear wheel bearing and hub assembly
- Lugs: 5
- ABS: Yes
- Flange diameter: 136.4 mm
- Flange offset: 72.8 mm
- Bolt circle diameter: 108 mm
- Replaces part numbers: 512496, HA590485, CV6Z1104G
Installation
- Safely raise and support the vehicle, then remove the rear wheel.
- Remove the brake caliper and rotor, and disconnect the ABS sensor.
- Unbolt and remove the original hub assembly.
- Install the new hub, reconnect the ABS sensor, and torque all fasteners to factory specifications.
FAQ
Does it fit an AWD Escape? No. The Escape is listed for FWD only.
Does it fit both rear sides? Yes. It fits the rear left or right position.
Does it fit every MKC trim? No. 2017-2018 is listed for Premiere and Black Label, and 2019 for FWD with Automated Parking System.
