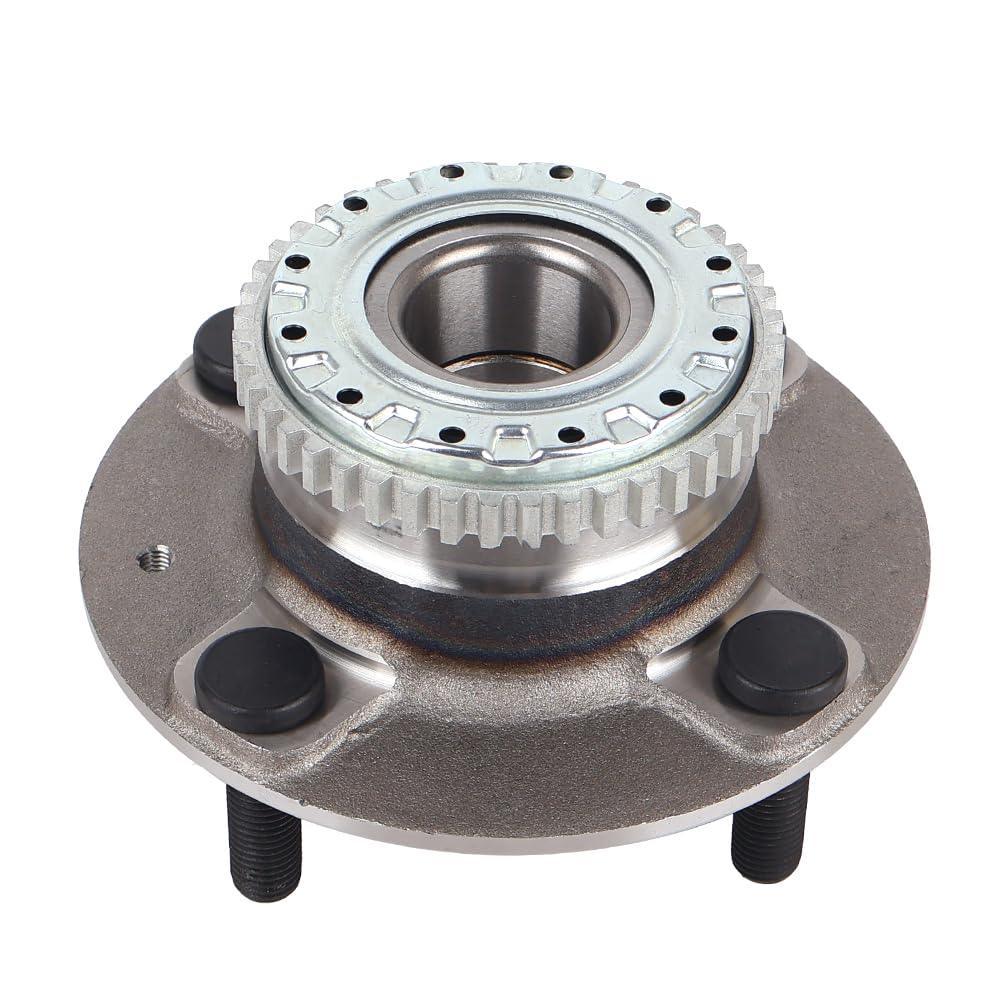

Rear 4-Lug Wheel Hub Bearing Assembly for 4-Wheel ABS Hyundai Elantra, Kia Spectra & Spectra5

Rear 4-Lug Wheel Hub and Bearing Assembly for 4-Wheel ABS

Rear wheel hub and bearing assembly for the exact Hyundai Elantra, Kia Spectra, and Kia Spectra5 applications listed below. This version is specifically identified for vehicles equipped with four-wheel ABS and a 4-lug wheel pattern.

Critical fitment warning: For 4-wheel ABS only. 4-lug applications only. Do not order for a vehicle without four-wheel ABS or with a different lug pattern. The source does not specify left versus right side, package quantity, rear drum versus rear disc brakes, engine, transmission, trim, production date, ABS connector details, or whether an ABS sensor and wire are included. Confirm the VIN, four-wheel ABS configuration, rear brake type, lug count, original hub reference, flange dimensions, mounting pattern, connector if applicable, and package contents before ordering.

Vehicle Compatibility

• 2001–2006 Hyundai Elantra — 4-wheel ABS, 4-lug only
• 2005–2009 Kia Spectra — 4-wheel ABS, 4-lug only
• 2005–2009 Kia Spectra5 — 4-wheel ABS, 4-lug only

Not compatible or not confirmed: Vehicles without four-wheel ABS, non-4-lug configurations, other model years, or vehicles whose original dimensions, references, brake configuration, mounting pattern, and connector do not match.

Position and Configuration

• Axle position: Rear
• Wheel studs: 4-lug configuration
• ABS: 4-wheel ABS only
• Side: Not specified; verify left/right interchange
• Quantity: Not specified; verify package contents
• Rear brake type: Drum/disc compatibility not provided

Confirmed Dimensions

• Flange diameter: 139 mm
• Flange offset: 50.5 mm
• Bolt-circle diameter: 4.50 in

Measure and compare the original hub before installation. The source uses mixed metric and inch units and does not provide bolt-pilot diameter, spindle or bearing-interface dimensions, wheel-stud thread, mounting-bolt pattern, connector pin count, or ABS-wire length.

Reference Numbers

VKBA6890, VKBA6837, VKBA7482, VKBA6844, 512195, 527102D100

Reference numbers are provided for comparison. A matching number alone does not override four-wheel ABS, lug count, rear brake type, dimensions, mounting pattern, production-date, or connector differences.

Included Components

• Rear wheel hub and bearing assembly

ABS sensor, sensor wire, wheel studs, mounting bolts, spindle or axle nut, seals, dust cap, backing plate, brake components, and other hardware are not separately confirmed by the source. Verify the product images and received package before installation.

Installation Notes

Wheel-hub service affects braking, wheel retention, ABS operation, alignment, and vehicle stability and should be performed by a qualified technician. Compare the new and original hub for four-wheel-ABS design, brake configuration, flange and pilot dimensions, mounting pattern, stud pattern, bearing interface, connector, and wire routing.

Inspect the spindle or carrier, rear brakes, ABS wiring, seals, and fasteners. Clean mating surfaces and follow the applicable Hyundai or Kia procedures and torque specifications. After installation, verify bearing operation, wheel runout, ABS warning-light status, parking-brake operation, and brake function before road use.

Frequently Asked Questions

What does 4-wheel ABS only mean?
The vehicle must be equipped with ABS at all four wheels. Verify the VIN, brake configuration, and original hub before ordering.

Does this fit Kia Spectra5?
Yes. The source confirms 2005–2009 Kia Spectra5 with four-wheel ABS and a 4-lug pattern.

Can it fit either rear side?
The source does not specify left/right interchange. Compare the original hub and mounting geometry before ordering.

Is the ABS sensor included?
The hub is specified for an ABS system, but sensor and wiring inclusion is not separately confirmed.
