Rear 5-Lug Non-ABS Wheel Hub Bearing for Dodge Caravan, Grand Caravan, Chrysler Town & Country & Voyager

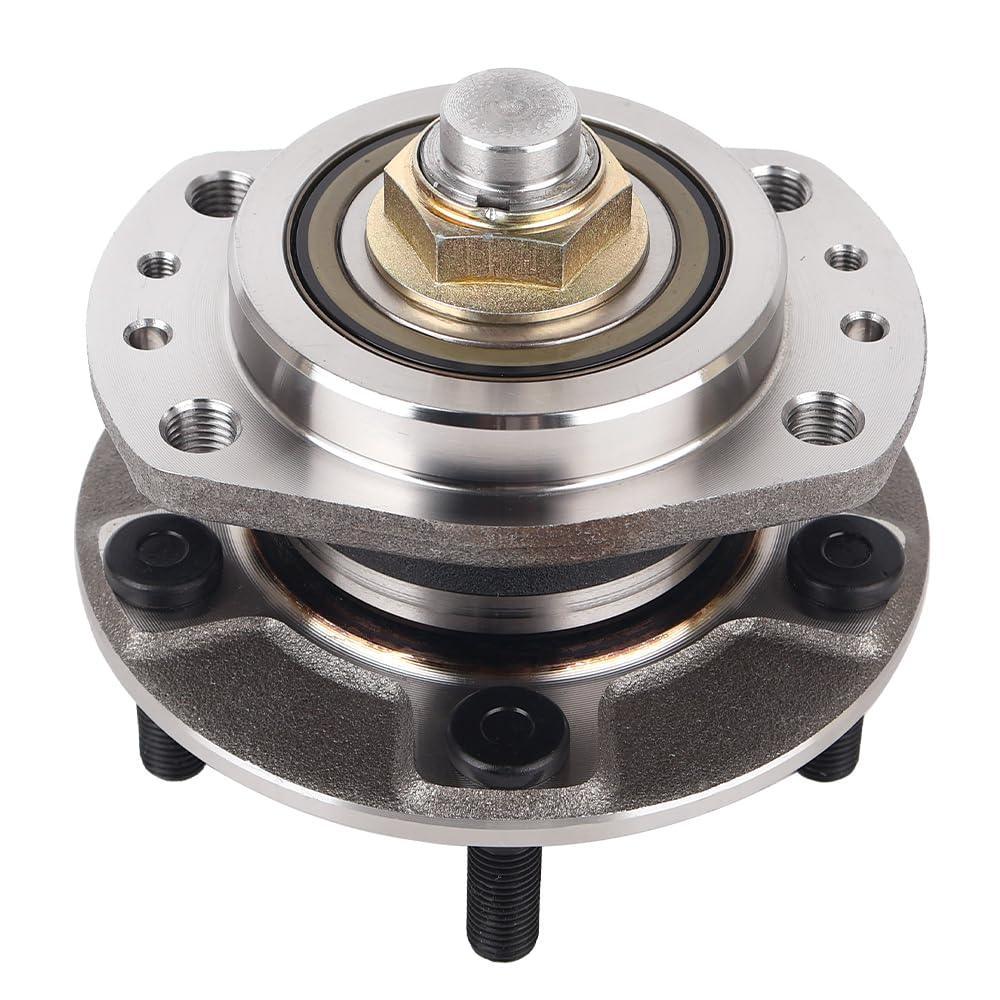

Rear 5-Lug Non-ABS Wheel Hub and Bearing Assembly

Rear wheel hub and bearing assembly for the exact Dodge Caravan, Dodge Grand Caravan, Chrysler Town & Country, and Chrysler Voyager model-year applications listed below. This version is specifically identified for a 5-lug wheel pattern without ABS.

Critical fitment warning: Non-ABS and 5-lug applications only. Dodge Grand Caravan coverage is limited to 2001 and 2005 only, not a continuous 2001–2005 range. The source does not specify left versus right side, package quantity, rear drum versus rear disc brakes, engine, wheelbase, trim, production date, or included hardware. Confirm the VIN, exact model name and year, ABS status, rear brake type, lug count, original hub reference, flange dimensions, mounting pattern, and package contents before ordering.

Vehicle Compatibility

• 2001–2007 Dodge Caravan — rear, 5-lug, non-ABS
• 2001 and 2005 Dodge Grand Caravan — rear, 5-lug, non-ABS; only these two years are listed
• 2004–2007 Chrysler Town & Country — rear, 5-lug, non-ABS
• 2001–2003 Chrysler Voyager — rear, 5-lug, non-ABS

Not compatible or not confirmed: ABS-equipped vehicles, non-5-lug configurations, unlisted Grand Caravan years, other model years, or vehicles whose original dimensions, references, brake configuration, and mounting pattern do not match.

Position and Configuration

• Axle position: Rear
• Wheel studs: 5-lug configuration
• ABS: Non-ABS only
• Side: Not specified; verify left/right interchange
• Quantity: Not specified; verify package contents
• Rear brake type: Drum/disc compatibility not provided

Confirmed Dimensions

• Flange diameter: 140.2 mm
• Flange offset: 48 mm
• Bolt-circle diameter: 4.50 in

Measure and compare the original hub before installation. The source uses mixed metric and inch units and does not provide bolt-pilot diameter, spindle or bearing-interface dimensions, wheel-stud thread, mounting-bolt pattern, or brake-specific dimensions.

Reference Numbers

512170, BR930279, 4683869AA, 4683869AB

Reference numbers are provided for comparison. A matching number alone does not override ABS status, exact model and year, lug count, rear brake type, dimensions, mounting pattern, wheelbase, or production differences.

Included Components

• Rear wheel hub and bearing assembly

Wheel studs, mounting bolts, spindle nut, seals, dust cap, backing plate, brake components, and other hardware are not separately confirmed by the source. Verify the product images and received package before installation.

Installation Notes

Wheel-hub service affects braking, wheel retention, alignment, and vehicle stability and should be performed by a qualified technician. Compare the new and original hub for ABS/non-ABS design, flange and pilot dimensions, mounting pattern, stud pattern, bearing interface, and brake configuration.

Inspect the spindle or carrier, rear brakes, seals, and fasteners. Clean mating surfaces and follow the applicable Dodge or Chrysler procedures and torque specifications for hub hardware, brake components, and wheel nuts. After installation, verify bearing operation, wheel runout, parking-brake operation, and brake function before road use.

Frequently Asked Questions

Does this fit every 2001–2005 Grand Caravan?
No. The source lists only 2001 and 2005 Grand Caravan applications.

Does it fit vehicles with ABS?
No. The source specifies non-ABS applications only.

Can it fit either rear side?
The source does not specify left/right interchange. Compare the original hub and mounting geometry before ordering.

Does it fit rear drum and disc brakes?
The source does not state brake-type interchange. Verify the original rear brake and hub configuration.
