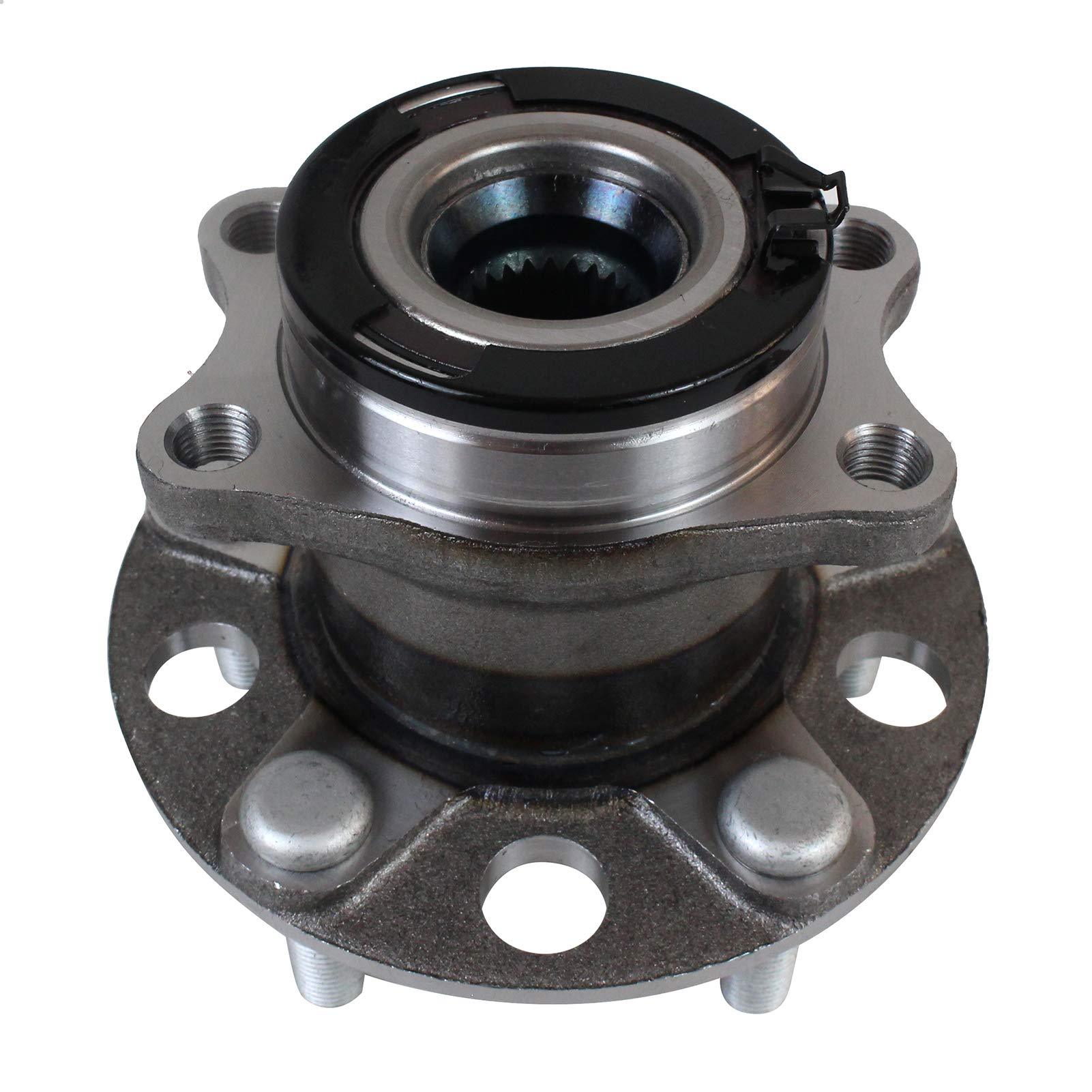

Rear Wheel Bearing Hub Assembly for 2007-2017 Jeep Compass, Patriot, 07-08 Dodge Caliber
Available in stock (20)
Rear Wheel Hub Bearing Assembly — 512333 (Single Unit, One Side, AWD/4WD Only, 5-Lug, ABS, Rear) — 2007–2017 Jeep Compass / 2007–2017 Jeep Patriot / 2007–2008 Dodge Caliber
- Jeep Compass (MK, 1st Gen): 2007–2017 only. The 1st-gen Compass ran from 2007 through 2017. The 2nd-gen Compass (MP platform, 2018+) is a completely different vehicle with a different rear hub. NOT 2018 or later Compass.
- Jeep Patriot (MK): 2007–2017 only. The Patriot was discontinued after 2017. No successor model was produced.
- Dodge Caliber: 2007–2008 only. The Caliber was produced through 2012, but hub 512333 covers only the 2007 and 2008 model years. NOT 2009–2012 Caliber.
- Jeep Compass (2007–2017, MK 1st Gen): Car-based compact crossover with available AWD and 4WD. Hub 512333 applies to AWD/4WD variants of this entire first generation.
- Jeep Patriot (2007–2017, MK): Traditional-look compact Jeep SUV sharing the MK platform with the Compass. Same rear hub geometry for AWD/4WD variants.
- Dodge Caliber (2007–2008): Compact hatchback/wagon based on the related Chrysler GS/PF platform. Hub 512333 covers the AWD rear hub for the 2007 and 2008 model years only.
Full Vehicle Compatibility — Chrysler MK Platform (Rear Hub, AWD/4WD)
| Make | Model | Platform | Years | Drive | Notes |
|---|---|---|---|---|---|
| Jeep | Compass | MK (1st Gen) | 2007–2017 | AWD / 4WD Only | NOT FWD. NOT 2018+ Compass (MP, 2nd gen). |
| Jeep | Patriot | MK | 2007–2017 | AWD / 4WD Only | NOT FWD. Discontinued after 2017. |
| Dodge | Caliber | GS/PF (related) | 2007–2008 | AWD Only | 2007–2008 only. NOT 2009–2012 Caliber. |
Confirm make, model, exact year, and AWD/4WD drivetrain before ordering. Contact us with your VIN for fitment verification.
Jeep Compass / Patriot Generation Reference
| Model | Generation | Platform | Years | Hub 512333 Fits? |
|---|---|---|---|---|
| Compass | 1st Gen | MK | 2007–2017 | ✅ Yes — AWD/4WD only |
| Compass | 2nd Gen | MP | 2018+ | ❌ No — different hub |
| Patriot | (Only Gen) | MK | 2007–2017 | ✅ Yes — AWD/4WD only |
| Caliber | (Only 07-08) | GS/PF | 2007–2008 | ✅ Yes — AWD only |
| Caliber | — | GS/PF | 2009–2012 | ❌ No — NOT covered |
OEM & Aftermarket Cross-Reference
| Part Number | Notes |
|---|---|
| 5105770AD | Chrysler / Jeep OEM cross-reference |
| 512333 | Primary aftermarket part number |
| BR930649 | Aftermarket cross-reference (Raybestos) |
| HA590230 | Aftermarket cross-reference (Timken) |
Part Specifications
| Specification | Details |
|---|---|
| Part Number | 512333 (same for left and right rear) |
| SKU | SA-512333 (single unit) |
| Quantity | 1 unit (single rear hub only) |
| Position | Rear — Left or Right (same part both sides) |
| Drivetrain | AWD / 4WD Only — NOT FWD |
| ABS | Yes — ABS sensor ring integrated |
| Lug Count | 5 Lugs (5×114.3 mm) |
| Bolt Circle Diameter | 4.50 in ≈ 5×114.3 mm |
| Flange Diameter | 5.53 in (140.5 mm) |
| Flange Offset | 2.39 in (60.7 mm) |
| Unit Weight | ~3.29 kg (single unit) |
Key Features
- Chrysler MK Compact Crossover AWD/4WD Rear Hub (2007–2017): 512333 covers the rear driven hub for AWD/4WD variants of the Compass, Patriot, and early Caliber — one part number across the full MK platform production run.
- AWD/4WD Rear Driven Hub: Internal spline engages the rear half-shaft on AWD/4WD vehicles. Not compatible with FWD non-driven rear hubs.
- Chrysler/Jeep 5×114.3 mm: Compact Jeep bolt pattern — distinct from the larger Jeep Grand Cherokee WK pattern (5×127 mm).
- OEM-Equivalent Quality: Tested to meet or exceed OEM performance standards. Sealed design minimizes noise and vibration.
Installation Notes
- Professional installation recommended. Confirm AWD or 4WD drivetrain and exact model year before installation.
- Compass and Patriot buyers: confirm your vehicle is AWD or 4WD — FWD variants use a different, non-driven rear hub.
- Caliber buyers: confirm model year is 2007 or 2008 only. The 2009–2012 Caliber is not covered by this hub.
- Compass buyers: confirm your Compass is a 1st-gen MK (2007–2017). The 2018+ Compass (MP, 2nd gen) uses a different rear hub.
- Torque all fasteners to Chrysler/Jeep OEM specification per your service manual. Verify ABS sensor connection after installation.
- This listing is for one rear hub only. Order quantity 2 if replacing both rear hubs.
Note: Single rear hub. 512333, AWD/4WD only, 5-lug 5×114.3, ABS. Chrysler OEM 5105770AD. Fits Compass/Patriot 2007–2017 (MK 1st gen, AWD/4WD only, NOT FWD, NOT 2018+ Compass MP) and Caliber 2007–2008 (NOT 2009–2012). Single unit — order qty 2 for both rear corners.
