Rear 5-Lug Non-ABS Wheel Hub Bearing for 2002-2004 Toyota Camry, Excluding Japan-Built

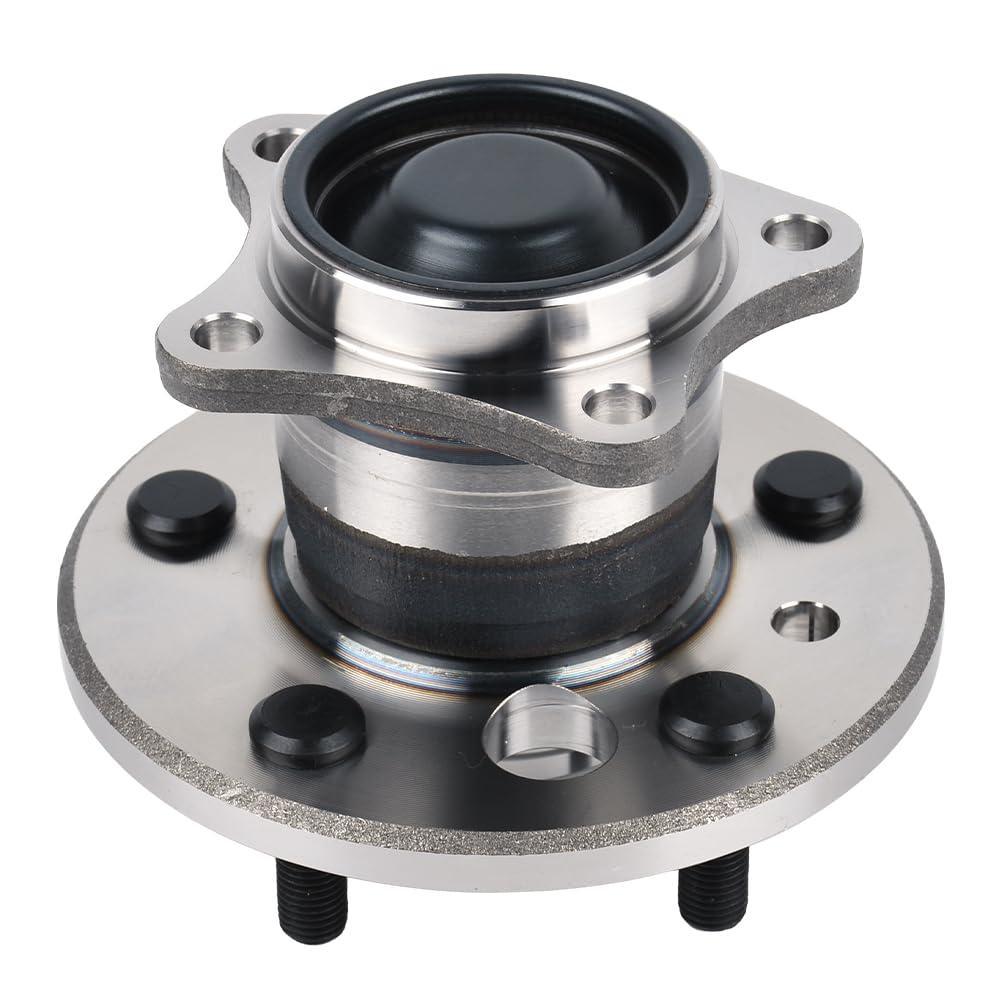

Rear 5-Lug Non-ABS Wheel Hub and Bearing Assembly

Rear wheel hub and bearing assembly for source-listed 2002–2004 Toyota Camry non-ABS applications, excluding Japan-built vehicles. The source identifies a five-lug flange and reference number 512208.

Critical fitment warning: This hub is for non-ABS applications only and does not fit Japan-built vehicles. Manufacturing origin is a vehicle-specific attribute and must be confirmed from the VIN, certification label, build information, or original part; it cannot be determined solely from the country where the vehicle was sold. Confirm the VIN, build origin, non-ABS configuration, rear-hub dimensions, mounting pattern, brake package, and every reference number before ordering.

Source-Listed Compatibility

• 2002 Toyota Camry, non-ABS, excluding Japan-built vehicles
• 2003 Toyota Camry, non-ABS, excluding Japan-built vehicles
• 2004 Toyota Camry, non-ABS, excluding Japan-built vehicles

Explicit Exclusions

• Japan-built Toyota Camry vehicles
• ABS-equipped applications
• Front-axle use
• Unlisted model years

Also not confirmed: Specific engine, trim, body-style, production-date, brake-package, or left/right variations that use a different rear hub. Compare the original assembly and dimensions before ordering.

Product Specifications

• Position: Rear axle
• ABS: Non-ABS application only
• Wheel studs: 5-lug configuration
• Flange diameter: 5.98 in
• Flange offset: 2.93 in
• Bolt-circle diameter: 4.5 in

The source does not provide hub pilot diameter, stud thread size, mounting-bolt spacing, bearing generation, axle or spindle dimensions, torque specifications, build-plant codes, or confirmed left/right interchange. Match the removed hub and vehicle build information before installation.

Package Contents

• Rear wheel hub and bearing assembly; package quantity not specified

The source does not confirm mounting bolts, spindle or axle nut, brake hardware, dust shield, snap ring, seals, wiring, or installation tools. Do not assume two hub assemblies are included.

Reference Numbers

512208, BR930232, 42410-33050

Reference numbers are supplied for comparison only. A matching number does not override build-origin, ABS, dimensional, mounting-pattern, brake-package, side, or production-date differences.

Installation Notes

Professional installation is recommended. Before disassembly, confirm that the vehicle is not Japan-built and is equipped with the source-listed non-ABS rear-hub configuration. Safely support the vehicle and follow the exact model-, build-, and brake-specific service procedure.

Compare the replacement hub with the original for stud pattern, flange diameter, offset, bolt circle, pilot, mounting points, brake-rotor or drum interface, parking-brake arrangement, and any sensing features. Do not install on an ABS-equipped vehicle or when the original hub differs.

Clean the rear carrier or knuckle mounting surface and remove corrosion or debris without damaging the mating face. Inspect the carrier or spindle, brake and parking-brake components, dust shield, fasteners, and seals. Replace damaged or manufacturer-designated single-use hardware as required.

Use the vehicle manufacturer's sequence and torque values for hub mounting fasteners, spindle or axle nut where applicable, brake components, suspension fasteners disturbed during service, and wheel fasteners. Incorrect torque can damage the bearing or create wheel play.

After installation, verify wheel rotation, brake and parking-brake operation, wheel play, and abnormal noise. Complete an alignment check if required by the service procedure or related suspension work.

Frequently Asked Questions

Does this fit an ABS-equipped Camry?
No. The source specifies non-ABS applications only.

Does this fit a Japan-built Camry?
No. Japan-built vehicles are explicitly excluded.

How do I confirm where my Camry was built?
Check the VIN, certification label, vehicle build information, and original part. Do not rely only on the country where the vehicle was sold.

Can this be used on either rear side?
The source does not state a side restriction or confirm left/right interchange. Compare the original hub, mounting geometry, and brake arrangement.

Is this a pair?
Package quantity is not stated. Do not assume two hub assemblies are included.
