Rear Wheel Hub Bearing Assembly for 2007-2010 Ford Edge, 2007-2010 Lincoln MKX
Available in stock (20)

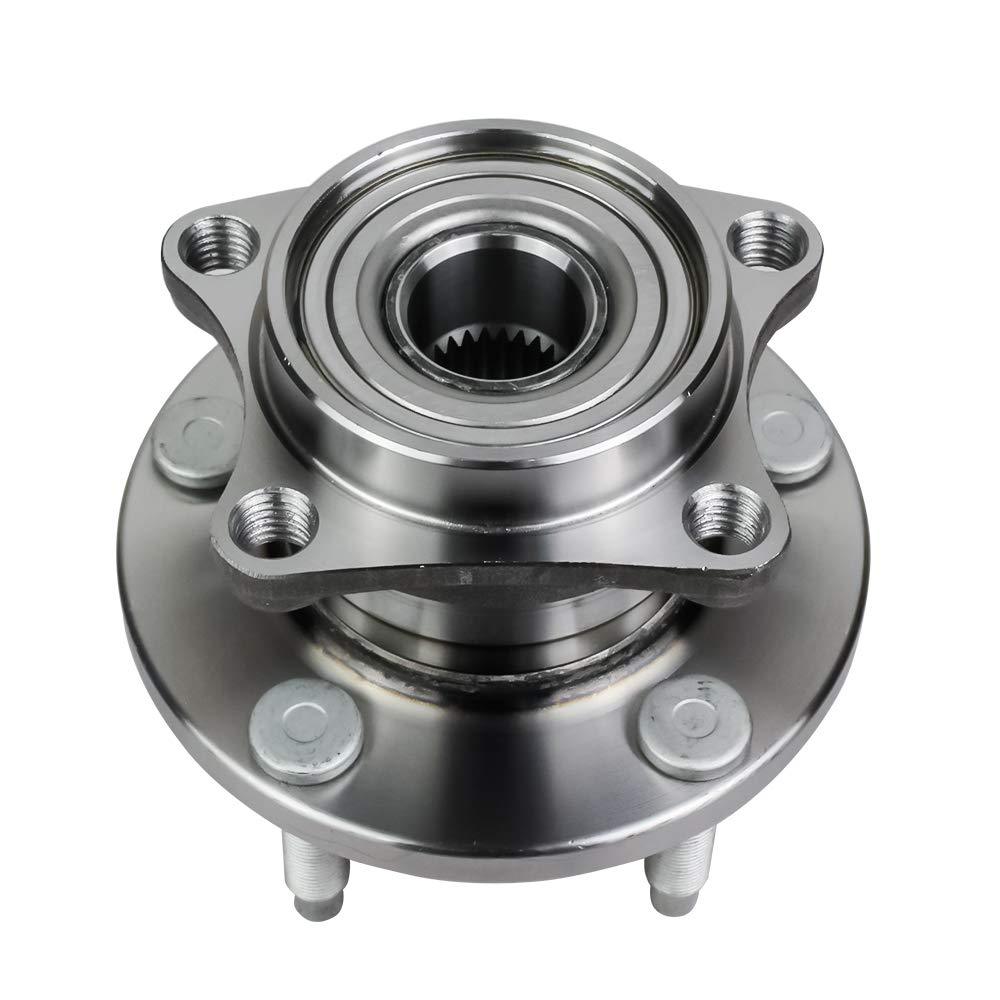

Rear Wheel Hub Bearing Assembly — 512335 (AWD Only, 5-Lug, ABS, Rear) — 2007–2010 Ford Edge / 2007–2010 Lincoln MKX — Ford CD3 Platform
Full Vehicle Compatibility — Ford CD3 Platform (AWD Only)
| Make | Model | Years | Notes |
|---|---|---|---|
| Ford | Edge | 2007–2010 | CD3 platform, first generation — AWD only, all AWD trims |
| Lincoln | MKX | 2007–2010 | CD3 platform — Lincoln-badged Edge, AWD standard on all trims |
The Lincoln MKX (2007–2010, first generation) is the Lincoln-badged variant of the Ford Edge built on the same CD3 platform — AWD is standard across all MKX trims, confirmed 512335 fitment. Confirm your Edge drivetrain (AWD vs FWD) before ordering. Contact us with your VIN for fitment verification if unsure.
Ford OEM Cross-Reference — 7T4Z-1104C
This hub assembly directly replaces Ford OEM part number 7T4Z-1104C — the factory rear AWD hub specification for the 2007–2010 Ford Edge and Lincoln MKX on the CD3 platform. Ford and Lincoln owners can verify fitment by cross-referencing this OEM part number via their dealer parts system or Ford ETIS.
Part Specifications
| Specification | Details |
|---|---|
| Part Number | 512335 |
| SKU | SA-512335 (single unit) |
| Replaces OEM / Cross Reference | 7T4Z1104C (Ford OEM), 512335, HA590183, BR930636 |
| Position | Rear (single unit — left or right) |
| Drivetrain | AWD Only (NOT FWD) |
| Lug Count | 5 Lugs |
| ABS | Yes — ABS sensor ring integrated |
| Flange Diameter | 5.50 in (139.7 mm) |
| Flange Offset | 2.48 in (63.0 mm) |
| Bolt Circle Diameter | 4.5 in (114.3 mm) — Ford standard 5×114.3 |
| Weight | ~3.61 kg (single unit) |
Key Features
- CD3 Platform AWD Rear Hub: Correct rear hub specification for AWD variants of the first-generation Ford Edge (2007–2010) and Lincoln MKX (2007–2010). NOT for FWD Edge variants. Lincoln MKX is AWD standard — all MKX trims confirmed.
- Ford OEM Direct Replacement: Replaces Ford OEM 7T4Z-1104C and aftermarket references HA590183 and BR930636. Direct fit for the CD3 platform AWD rear hub position.
- Ford 5×114.3 Bolt Pattern: Fits the standard Ford 5×114.3 bolt pattern used across the CD3 Edge and MKX lineup.
- OEM-Equivalent Quality: Meets or exceeds OEM performance standards. Tested for load rating, bearing clearance, and ABS sensor signal integrity before shipment.
- ABS-Compatible: Integrated ABS tone ring — maintains factory ABS and AdvanceTrac stability control on all compatible AWD CD3 platform vehicles.
- Complete Assembly: Hub, bearing, and ABS ring pre-assembled — no press-fit or bearing packing required.
Installation Notes
- Professional installation recommended for Ford Edge and Lincoln MKX AWD rear hub replacement.
- Torque all fasteners to OEM specification. Verify ABS sensor connector seating after installation.
- Confirm AWD drivetrain before installation. FWD Edge variants use a different rear configuration.
- For both rear corners, order quantity 2.
Note: Single unit, rear position, AWD only. 512335, 5-lug, ABS, 5×114.3. Replaces Ford OEM 7T4Z1104C / HA590183 / BR930636. Fits 2007–2010 Ford Edge (AWD) and 2007–2010 Lincoln MKX (AWD standard). Confirm AWD drivetrain before ordering.
