Rear FWD 5-Lug ABS Wheel Hub Bearing Assembly for Lexus NX, HS250h, Scion tC iM, Toyota RAV4 Corolla iM

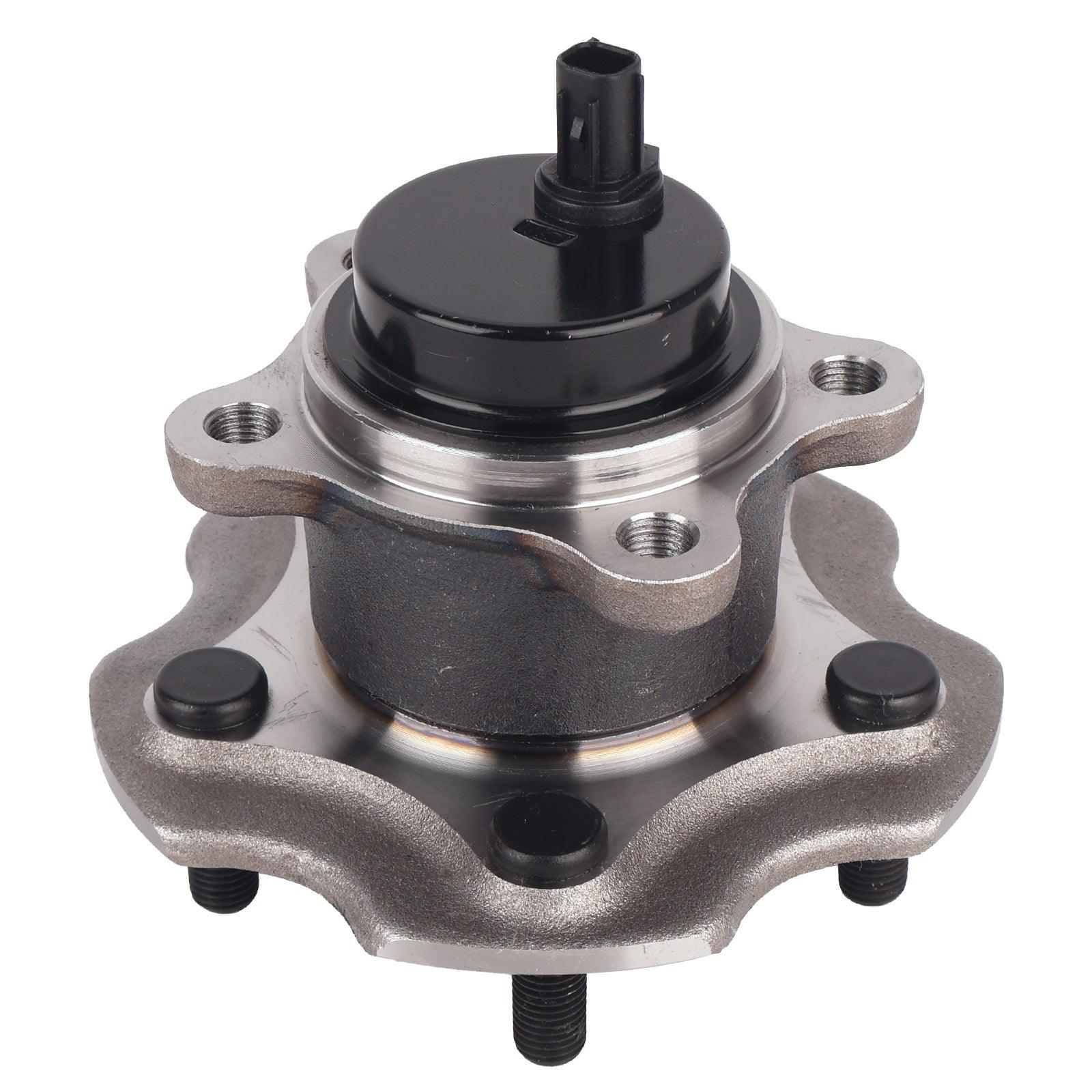

Rear 5-Lug ABS Wheel Hub and Bearing Assembly

Rear wheel hub and bearing assembly for the exact Lexus, Scion, and Toyota applications listed below. This version is identified for a 5-lug wheel pattern and ABS, with FWD required on the applications specifically marked.

Critical fitment warning: Toyota RAV4, Lexus NX200t, NX300, and NX300h coverage is restricted to FWD. AWD versions of those applications are not supported by the source. Corolla iM is listed as All Models; drivetrain restrictions are not provided for HS250h, Scion tC, or Scion iM. Confirm the VIN, drivetrain, model year, original hub reference, flange dimensions, mounting pattern, ABS connector if applicable, left/right interchange, and package contents before ordering.

Vehicle Compatibility

• 2006–2018 Toyota RAV4 — FWD only
• 2017–2018 Toyota Corolla iM — all models per source
• 2010–2012 Lexus HS250h — drivetrain restriction not provided
• 2015–2017 Lexus NX200t — FWD only
• 2018–2021 Lexus NX300 — FWD only
• 2015–2016 Lexus NX300h — FWD only
• 2011–2016 Scion tC — drivetrain restriction not provided
• 2016 Scion iM — drivetrain restriction not provided

Not compatible or not confirmed: AWD RAV4, NX200t, NX300, or NX300h; other model years; non-5-lug configurations; non-ABS applications; or vehicles whose original mounting pattern, dimensions, references, and connector do not match.

Position and Configuration

• Axle position: Rear
• Wheel studs: 5-lug configuration
• Brake system: ABS application
• Side: Not specified; verify left/right interchange
• Quantity: Not specified; verify package contents

Source-Listed Dimensions

• Flange diameter: 152 mm
• Flange offset: 60 mm
• Bolt-circle diameter: 152 mm

Dimension verification required: The source lists both the flange diameter and bolt-circle diameter as 152 mm. Because those identical values are unusual for this type of hub specification, measure the original hub and verify the product dimensions before installation. Do not rely on these source-listed dimensions alone.

The source does not provide bolt-pilot diameter, spline count, pilot bore, wheel-stud thread, mounting-bolt pattern, connector pin count, or ABS-wire length.

Reference Numbers

512372, 4245042040

Reference numbers are provided for comparison. A matching number alone does not override FWD/AWD, ABS, lug-count, dimensional, mounting-pattern, or connector differences.

Included Components

• Rear wheel hub and bearing assembly

ABS sensor, wiring harness, wheel studs, mounting bolts, axle nut, seals, dust shield, and other hardware are not separately confirmed by the source. Verify the product images and received package before installation.

Installation Notes

Wheel-hub service affects braking, wheel retention, ABS operation, alignment, and vehicle stability and should be performed by a qualified technician. Before installation, compare the new and original hub dimensions, flange, mounting pattern, stud pattern, connector, and wire routing.

Inspect the spindle or axle interface, knuckle or carrier, brakes, ABS wiring, seals, and fasteners. Clean mating surfaces and follow the applicable Lexus, Scion, or Toyota procedures and torque specifications. After installation, verify bearing operation, wheel runout, ABS warning-light status, wiring clearance, parking-brake operation, and brake function before road use.

Frequently Asked Questions

Does this fit an AWD Toyota RAV4?
No. The source specifies FWD for the 2006–2018 RAV4 application.

Does this fit an AWD Lexus NX?
No AWD NX application is confirmed. The listed NX200t, NX300, and NX300h applications are FWD only.

Are the listed dimensions reliable?
The source lists both flange and bolt-circle diameter as 152 mm, which should be independently verified against the original hub before ordering.

Is an ABS sensor included?
The hub is specified for ABS applications, but sensor and wiring inclusion is not separately confirmed.
