Rear 5-Lug Wheel Hub Bearing for FWD Acura TLX & Gas Honda Accord

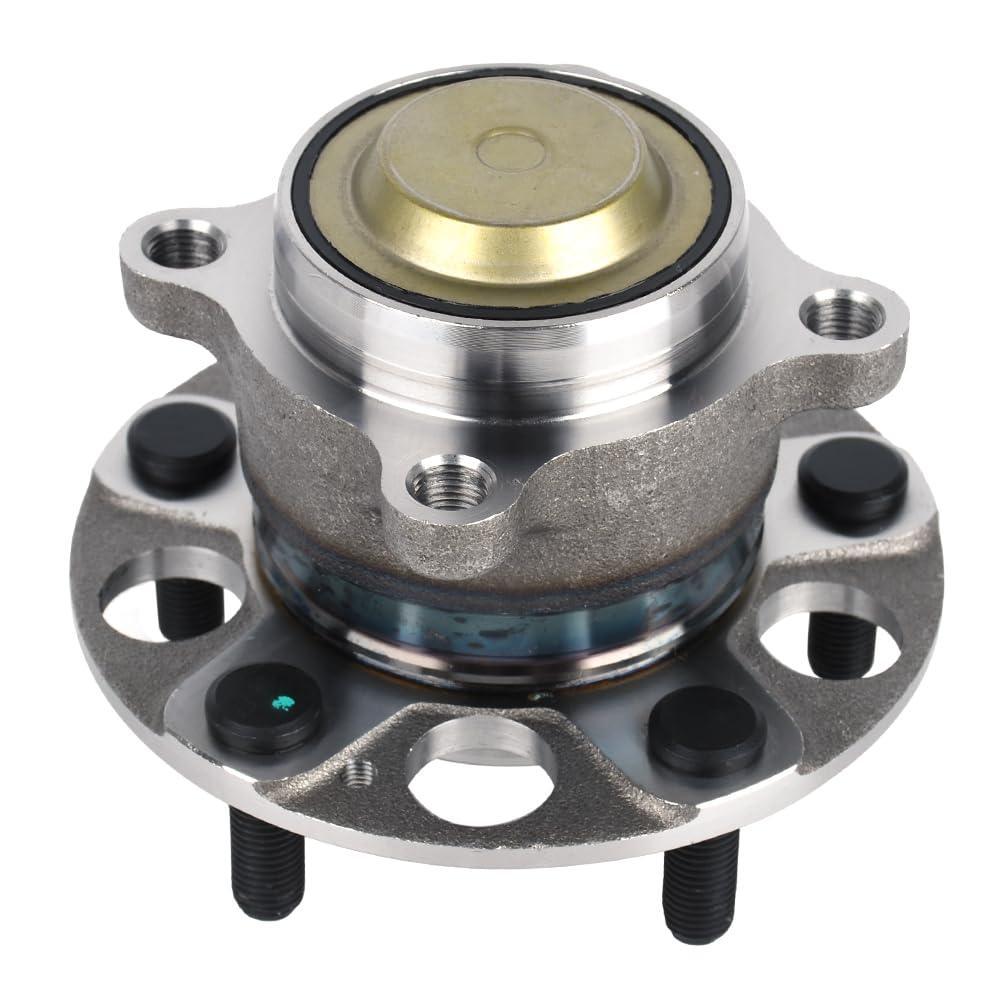

Rear 5-Lug Wheel Hub and Bearing Assembly for Acura TLX and Honda Accord

Rear wheel hub and bearing assembly for the exact FWD Acura TLX and gasoline-powered Honda Accord model-year applications listed below. The source identifies rear-left or rear-right use, a five-lug configuration, a four-hole flange, and no included speed sensor.

Critical fitment warning: Fitment is drivetrain- and powertrain-specific. Acura TLX compatibility is limited to FWD. Honda Accord compatibility is limited to gasoline models and excludes Hybrid. Confirm the VIN, exact model year, drivetrain, powertrain, rear-hub dimensions, flange and mounting pattern, wheel-speed sensing arrangement, brake package, and every reference number before ordering.

Acura Compatibility

• 2015–2020 Acura TLX FWD

Not confirmed for TLX: AWD or SH-AWD applications, unlisted model years, or vehicles whose rear hub, flange, brake package, or speed-sensing arrangement differs.

Honda Compatibility

• 2013–2015 Honda Accord, gasoline models only
• 2018–2023 Honda Accord, gasoline models only

Explicit Accord exclusions: 2016–2017 model years and all Hybrid applications.

Also not confirmed: Body-style, engine, trim, brake-package, or production-date variations that use a different rear hub. The broad model name does not override differences in flange, mounting pattern, speed sensing, or brake configuration.

Product Specifications

• Position: Rear left or rear right
• Wheel studs: 5-lug configuration
• Flange: 4-hole flange
• Speed sensor included: No
• Axle splines: Not applicable

The source does not provide flange diameter, hub pilot diameter, bolt-circle diameter, flange offset, stud thread size, mounting-bolt spacing, bearing generation, encoder or magnetic-ring details, connector information, or torque specifications. Compare the replacement hub with the removed assembly before installation.

Package Contents

• Rear wheel hub and bearing assembly; package quantity not specified

The source does not confirm a speed sensor, mounting bolts, axle nut, brake hardware, dust shield, snap ring, wiring, wiring clips, or installation tools. Do not assume two hub assemblies are included simply because the part can be used on the left or right side.

Reference Numbers

512544, BR930856

References are retained from the supplied source after removing stray formatting punctuation. A matching number does not override drivetrain, hybrid, model-year, flange, brake-package, or speed-sensing differences.

Installation Notes

Professional installation is recommended. Confirm TLX FWD or Accord gasoline configuration before disassembly. Safely support the vehicle and follow the exact model-, year-, drivetrain-, and brake-specific service procedure.

Compare the replacement hub with the original for stud pattern, four-hole flange, pilot, mounting points, flange offset, brake-rotor fit, parking-brake arrangement, and wheel-speed sensing features. The source states that a speed sensor is not included; determine whether the vehicle uses a separate sensor or an encoded bearing and inspect all related components.

Clean the rear carrier or knuckle mounting surface and remove corrosion or debris without damaging the mating face. Inspect the carrier, brake components, parking-brake components, dust shield, sensor, wiring, and fasteners. Replace damaged or manufacturer-designated single-use hardware as required.

Use the vehicle manufacturer's tightening sequence and torque values for hub mounting bolts, brake components, suspension fasteners disturbed during service, and wheel fasteners. Route any sensor wiring exactly as required and secure it away from rotating, moving, or hot components.

After installation, verify wheel rotation, brake and parking-brake operation, ABS and stability-control warning lights, wheel play, and abnormal noise. Complete an alignment check if the service procedure or related suspension work requires it.

Frequently Asked Questions

Does this fit an Acura TLX SH-AWD?
No. The source specifies 2015–2020 TLX FWD only.

Does this fit a Honda Accord Hybrid?
No. The source explicitly excludes Hybrid applications.

Does it fit a 2016 or 2017 Accord?
No compatibility is supplied for those years. The source lists 2013–2015 and 2018–2023 only.

Can it be used on either rear side?
The source specifies rear left or right use, subject to matching the original hub, flange, and sensing arrangement.

Is the speed sensor included?
No. The source explicitly states that a speed sensor is not included.

Is this a pair?
Package quantity is not stated. Do not assume two assemblies are included.
