Rear FWD 5-Lug ABS Wheel Hub Bearing Assembly for 2014-2020 Mazda6 & 2013-2020 CX-5
Available in stock (20)

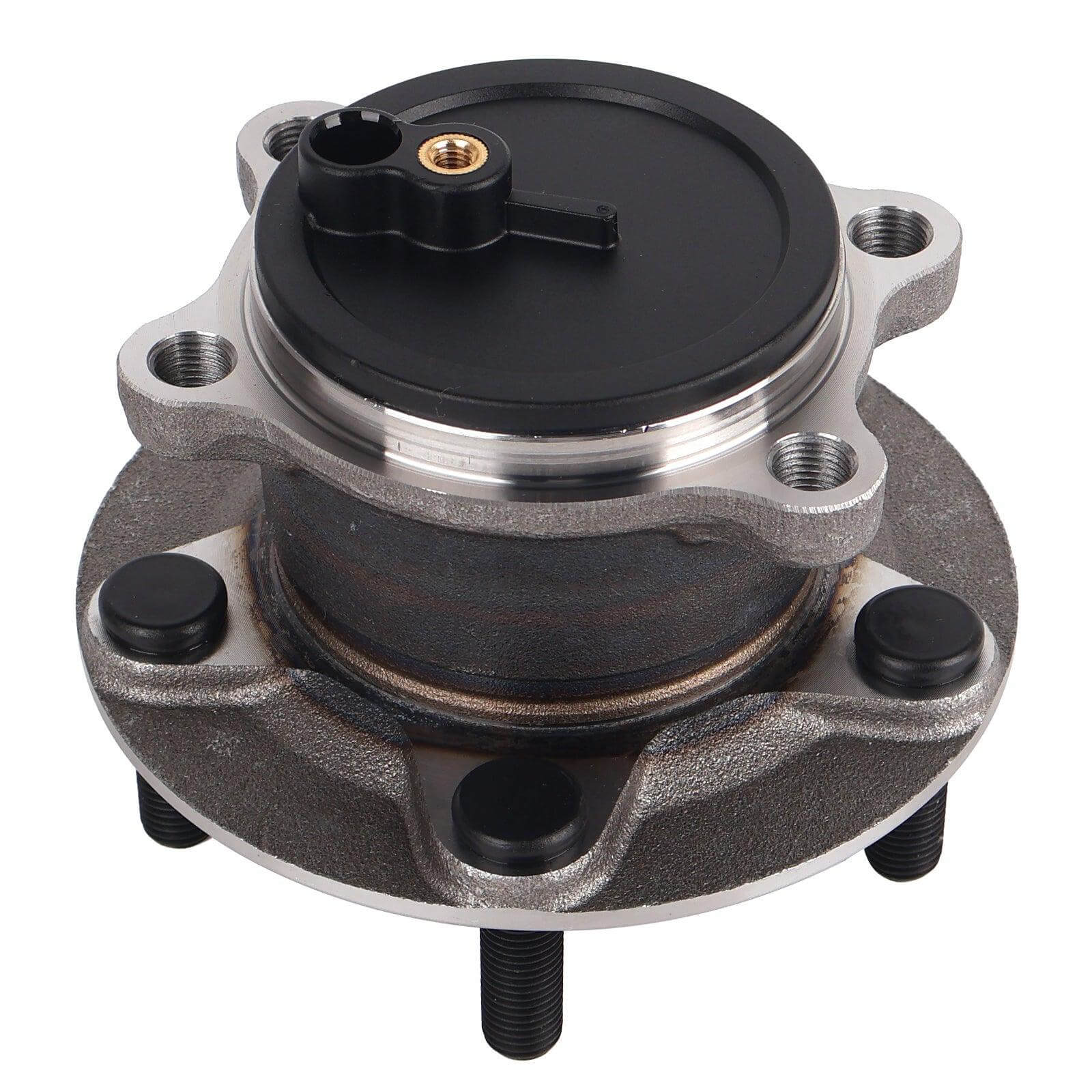

Rear FWD 5-Lug ABS Wheel Hub and Bearing Assembly
Rear wheel hub and bearing assembly for the exact Mazda6 and Mazda CX-5 applications listed below. This version is identified for FWD vehicles with a 5-lug wheel pattern and ABS.
Critical fitment warning: FWD only. AWD applications are not supported by the source. Confirm the VIN, drivetrain, model year, lug count, original hub reference, flange dimensions, mounting pattern, ABS connector if applicable, left/right interchange, and package contents before ordering.
Vehicle Compatibility
- 2014–2020 Mazda6 — FWD only
- 2013–2020 Mazda CX-5 — FWD only
Not compatible or not confirmed: AWD vehicles, other model years, non-5-lug configurations, non-ABS applications, or vehicles whose original dimensions, references, mounting pattern, and connector do not match.
Position and Configuration
- Axle position: Rear
- Drivetrain: FWD only
- Wheel studs: 5-lug configuration
- Brake system: ABS application
- Side: Not specified; verify left/right interchange
- Quantity: Not specified; verify package contents
Confirmed Dimensions
- Flange diameter: 138.7 mm
- Flange offset: 57 mm
- Bolt-circle diameter: 115.1 mm
Measure and compare the original hub before installation. The source does not provide bolt-pilot diameter, spline count, pilot bore, wheel-stud thread, mounting-bolt pattern, connector pin count, or ABS-wire length.
Reference Numbers
VKBA7649, MB76301, WE61801, 512519, KD312615XA, KD312615XB
Reference numbers are provided for comparison. A matching number alone does not override FWD/AWD, ABS, lug-count, dimensional, mounting-pattern, production, or connector differences.
Included Components
- Rear wheel hub and bearing assembly
ABS sensor, wiring harness, wheel studs, mounting bolts, axle nut, seals, dust shield, and other hardware are not separately confirmed by the source. Verify the product images and received package before installation.
Installation Notes
Wheel-hub service affects braking, wheel retention, ABS operation, alignment, and vehicle stability and should be performed by a qualified technician. Before installation, compare the new and original hub dimensions, flange, mounting pattern, stud pattern, connector, and wire routing.
Inspect the spindle or axle interface, knuckle or carrier, brakes, ABS wiring, seals, and fasteners. Clean mating surfaces and follow Mazda procedures and torque specifications for hub fasteners, axle hardware where applicable, brake components, and wheel nuts. After installation, verify bearing operation, wheel runout, ABS warning-light status, wiring clearance, parking-brake operation, and brake function before road use.
Frequently Asked Questions
Does this fit an AWD Mazda CX-5?
No. The source specifies FWD for the listed CX-5 application.
Does this fit an AWD Mazda6?
No AWD application is confirmed. This listing is identified for FWD vehicles.
Can it fit either rear side?
The source does not specify left/right interchange. Compare the original hub, mounting pattern, connector, and wire routing before ordering.
Is an ABS sensor included?
The hub is specified for ABS applications, but sensor and wiring inclusion is not separately confirmed.
