Rear 5-Lug ABS Wheel Hub Bearing Assembly for 2016-2021 Honda Civic & 2019-2022 Insight

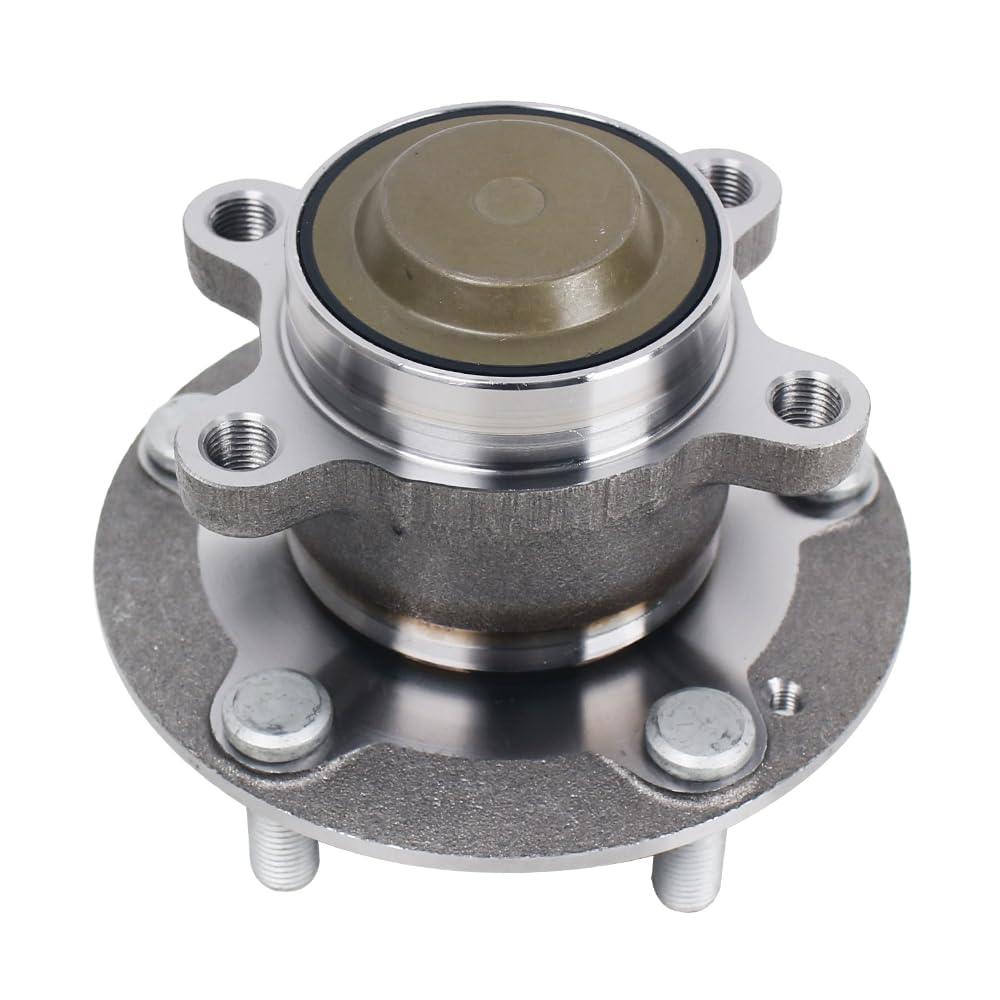

Rear 5-Lug ABS Wheel Hub and Bearing Assembly

Rear-position wheel hub and bearing assembly with a 5-lug flange and ABS-compatible configuration for the listed Honda Civic and Insight model-year ranges.

Critical fitment warning: The source does not specify left versus right, package quantity, Civic body style, trim, engine, Si or Type R coverage, production date, connector style, wheel-speed-sensor inclusion, mounting-bolt inclusion, or axle/spindle configuration. Confirm the VIN, rear axle position, original part number, 5-lug pattern, ABS configuration, flange dimensions, connector/sensor arrangement, and mounting geometry before ordering.

Vehicle Compatibility

• 2016–2021 Honda Civic — rear, 5-lug, ABS
• 2019–2022 Honda Insight — rear, 5-lug, ABS

Not confirmed: Exact Civic body style or trim, Si or Type R applications, non-ABS configurations, front-axle use, or any hub whose dimensions and original reference numbers do not match.

Specifications

• Axle position: Rear
• Lug count: 5
• ABS configuration: Yes
• Flange diameter: 139.3 mm
• Flange offset: 55.1 mm
• Bolt-circle diameter: 114.4 mm
• Side: Not specified
• Package quantity: Not specified

Reference Numbers

512570, 42200TBAA01, 42200TBAA02

Reference numbers are provided for comparison. Match the full number, rear position, ABS arrangement, flange dimensions, lug pattern, connector/sensor configuration, and mounting points before installation.

Package Contents

The source identifies a rear wheel hub and bearing assembly but does not confirm whether the package contains one or two assemblies. Wheel studs may be visible as part of the assembly, but ABS sensor, wiring lead, axle nut, mounting bolts, dust shield, brake hardware, and other installation parts are not confirmed as included. Verify the product images and received package before disassembly.

Installation Notes

Wheel-hub service affects wheel retention, braking, and ABS operation and should be performed by a qualified technician. Compare the replacement with the original hub before installation, including rear position, lug pattern, flange diameter and offset, bolt circle, mounting pattern, ABS encoder/sensor arrangement, and electrical connection.

Inspect the knuckle or trailing-arm mounting surface, axle/spindle, brake rotor, caliper, dust shield, wheel-speed sensor and wiring, and related fasteners. Clean mating surfaces without damaging the ABS encoder or sensor. Follow Honda procedures for fastener replacement, tightening sequence, and torque values. After installation, verify smooth rotation, correct wheel endplay, secure wheel mounting, proper brake operation, and no ABS or stability-control warning lights before road use.

Frequently Asked Questions

Is this a front or rear hub?
It is identified for the rear axle.

Does it fit both rear sides?
The source does not specify left or right. Compare the original reference number and physical configuration for the intended side.

How many hubs are included?
Package quantity is not stated, so a pair is not claimed.

Is the ABS sensor included?
The assembly is identified for ABS applications, but separate sensor or wiring inclusion is not confirmed.
