Rear 4WD/AWD Wheel Hub Bearing Assembly for 2006-2018 Toyota RAV4 & 2015-2019 Lexus NX, 5-Lug ABS
Available in stock (20)

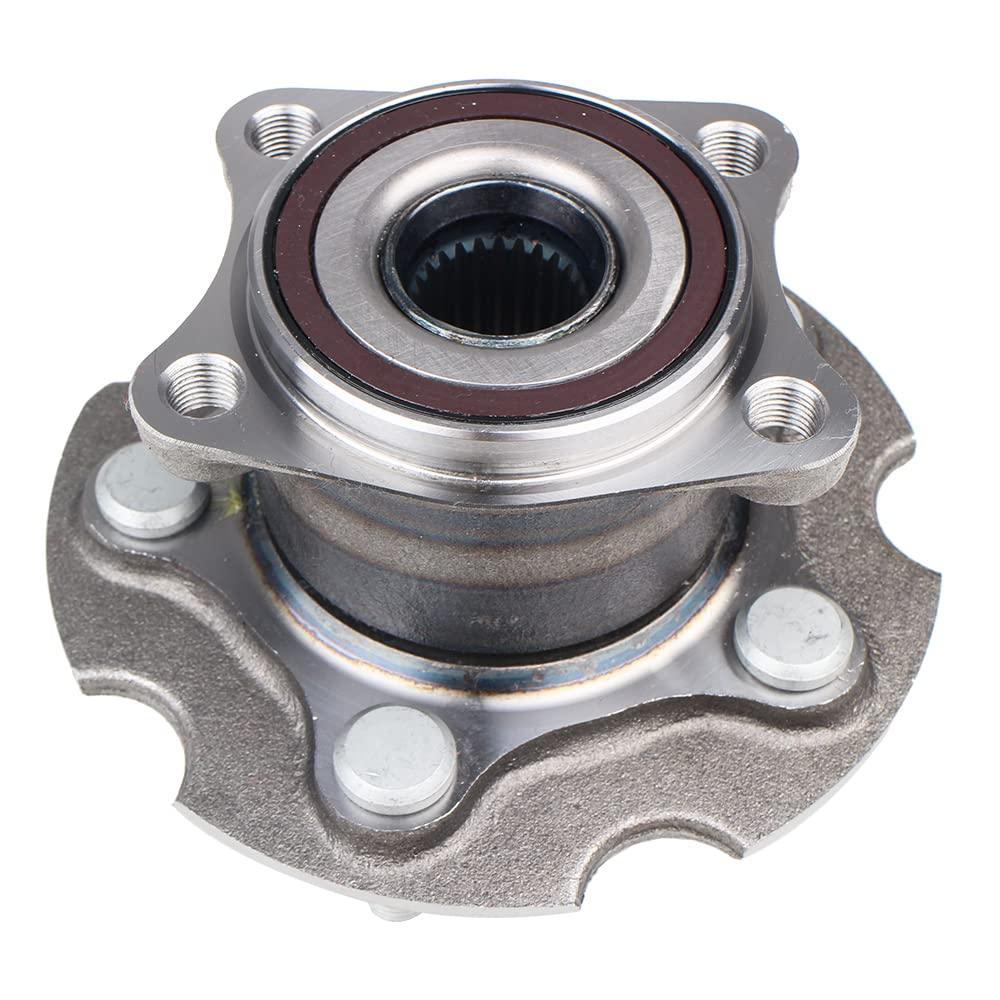

Rear 4WD/AWD Wheel Hub and Bearing Assembly with ABS
Rear wheel hub and bearing assembly for the listed Toyota RAV4 and Lexus NX 4WD/AWD applications. The source specifies a 5-lug configuration and ABS compatibility.
Critical fitment warning: This assembly is limited to 4WD/AWD vehicles. FWD/2WD applications are not confirmed. The source does not specify rear-left versus rear-right side, package quantity, engine, trim, production date, spline count, ABS connector shape, sensor wire length, mounting-bolt details, or hybrid-specific installation differences. Confirm the VIN, drivetrain, original reference number, side, 5-lug pattern, flange dimensions, splines, mounting points, ABS connector, and sensor configuration before ordering.
Vehicle Compatibility
- 2015–2017 Lexus NX200t — AWD only
- 2018–2019 Lexus NX300 — AWD only
- 2015–2019 Lexus NX300h — AWD only
- 2006–2018 Toyota RAV4 — 4WD/AWD only
Not confirmed: FWD/2WD vehicles or any model, year, drivetrain, or configuration not listed above.
Confirmed Specifications
- Axle position: Rear
- Drivetrain: 4WD/AWD only
- Wheel studs: 5-lug configuration
- ABS: ABS-compatible assembly
- Flange diameter: 5.96 in
- Flange offset: 2.36 in
- Bolt-circle diameter: 4.5 in
Left/right interchangeability, spline count, wheel-stud thread, ABS connector, sensor wire length, mounting-bolt dimensions, and axle-nut specifications are not provided.
Reference Numbers
512374, WE61617, BR930765
Reference numbers are provided for comparison. Match them together with the VIN, drivetrain, side, lug pattern, flange dimensions, splines, mounting points, ABS connector, and sensor configuration.
Package Contents
The source identifies a rear wheel hub and bearing assembly but does not confirm package quantity or left/right interchangeability. It also does not separately confirm the ABS sensor, harness, mounting bolts, axle nut, seals, or other hardware. Check the product images and package details before ordering; do not assume a left-and-right pair.
Installation Notes
Wheel-bearing service affects steering, braking, ABS operation, and wheel retention. Professional installation is recommended. For NX300h and hybrid RAV4 applications within the listed range, follow all vehicle-specific hybrid safety procedures. Inspect the knuckle, drive axle, axle splines, ABS wiring, brake components, and mounting surfaces before installation. Compare the flange, offset, bolt circle, connector, wire routing, and mounting points with the original hub. Follow vehicle-specific torque procedures for the axle nut, hub fasteners, brake components, and wheel nuts. After installation, verify wheel rotation, end play, ABS operation, brake operation, wheel-nut torque, and the absence of warning lights or abnormal noise.
Frequently Asked Questions
Does this fit FWD models?
No FWD fitment is confirmed. The source specifies 4WD/AWD only.
Does this fit the rear left and rear right?
The source confirms only the rear axle. Left/right interchangeability is not stated, so compare the original assembly and ABS connector before ordering.
Is this a pair?
Package quantity is not confirmed. Do not assume two assemblies are included.
Is the ABS sensor included?
ABS compatibility is stated, but sensor and harness inclusion are not separately confirmed. Check the product images and connector arrangement.
