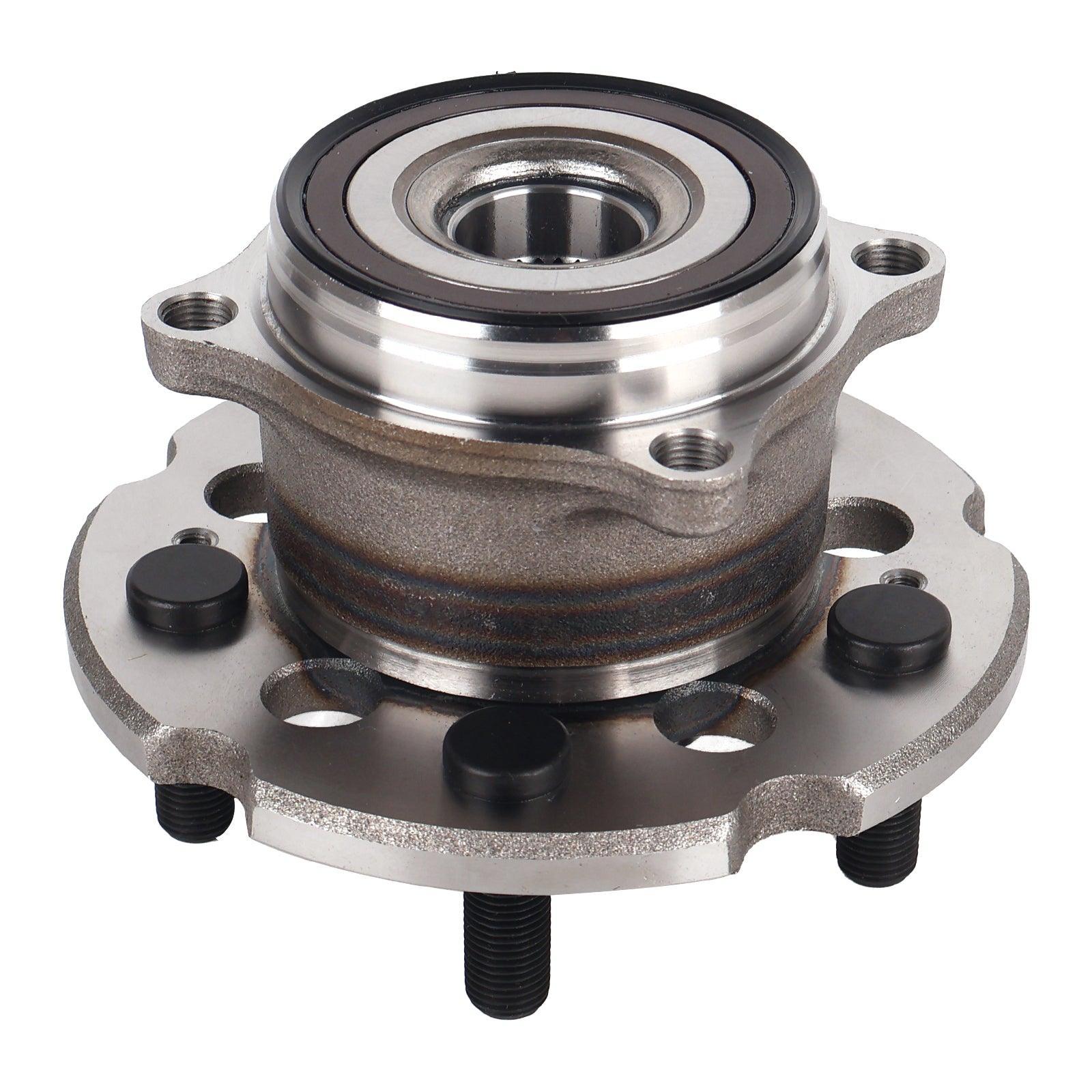

Rear Wheel Hub Bearing for 2007-2013 Acura MDX, 2010-2013 ZDX & 2009-2015 Honda Pilot AWD

Rear Wheel Hub and Bearing Assembly

Rear 5-lug wheel hub and bearing assembly with ABS compatibility for listed Acura MDX, Acura ZDX, and Honda Pilot applications. The assembly can be used on the rear-left or rear-right position according to the source.

Critical fitment warning: The 2009–2015 Honda Pilot application is limited to AWD models. FWD Pilot fitment is not confirmed. The source does not separately state drivetrain restrictions for the MDX or ZDX, or provide engine, trim, production date, ABS encoder or sensor design, spindle dimensions, flange measurements, mounting-bolt pattern, or connector details. Confirm the VIN, drivetrain, rear position, original hub number, 5-lug pattern, ABS configuration, mounting flange, spindle interface, and sensor design before ordering.

Vehicle Compatibility

• 2007–2013 Acura MDX — rear left or right; drivetrain restriction not separately stated
• 2010–2013 Acura ZDX — rear left or right; drivetrain restriction not separately stated
• 2009–2015 Honda Pilot — rear left or right, AWD only

Engine, trim, production-date, and brake or suspension option restrictions are not provided. Match the VIN and original assembly rather than relying on year and model alone.

Confirmed Specifications

• Position: Rear axle
• Sides: Rear left / driver or rear right / passenger
• Wheel studs: 5-lug configuration
• Brake system: ABS application
• Quantity: One wheel hub and bearing assembly

Reference Numbers

512342, BR930728, HA590229

Reference numbers are supplied for comparison. Confirm them together with the VIN, drivetrain, ABS type, wheel-stud pattern, mounting flange, spindle dimensions, sensor or encoder configuration, and original hub design.

Package Contents

One rear wheel hub and bearing assembly. This is not a two-hub set. A separate ABS sensor, wiring lead, spindle nut, mounting bolts, dust shield, seals, retaining hardware, and brake components are not confirmed unless shown in the product images.

Installation Notes

Wheel-hub service affects braking, ABS operation, wheel retention, and suspension safety; professional installation is recommended. Before installation, compare the replacement with the original hub, including mounting pattern, pilot, stud pattern, spindle interface, ABS encoder or sensor arrangement, and connector or wiring configuration. Inspect the spindle or knuckle, brake rotor, caliper, parking-brake components, dust shield, and ABS wiring. Clean mating surfaces, replace required single-use fasteners, and follow Acura or Honda torque specifications and tightening sequence. Do not use an impact wrench for final spindle-nut torque. After installation, confirm smooth rotation, correct end play, proper brake operation, and no ABS warning light.

Frequently Asked Questions

Will this fit a FWD Honda Pilot?
No FWD Pilot fitment is confirmed. The source specifies AWD only.

Does this fit either rear side?
Yes. The source states rear-left and rear-right compatibility.

Are two hubs included?
No. The source states the kit includes one rear wheel hub and bearing assembly.

Is an ABS sensor included?
The hub is specified for ABS applications, but a separate sensor or wiring lead is not confirmed as included.
