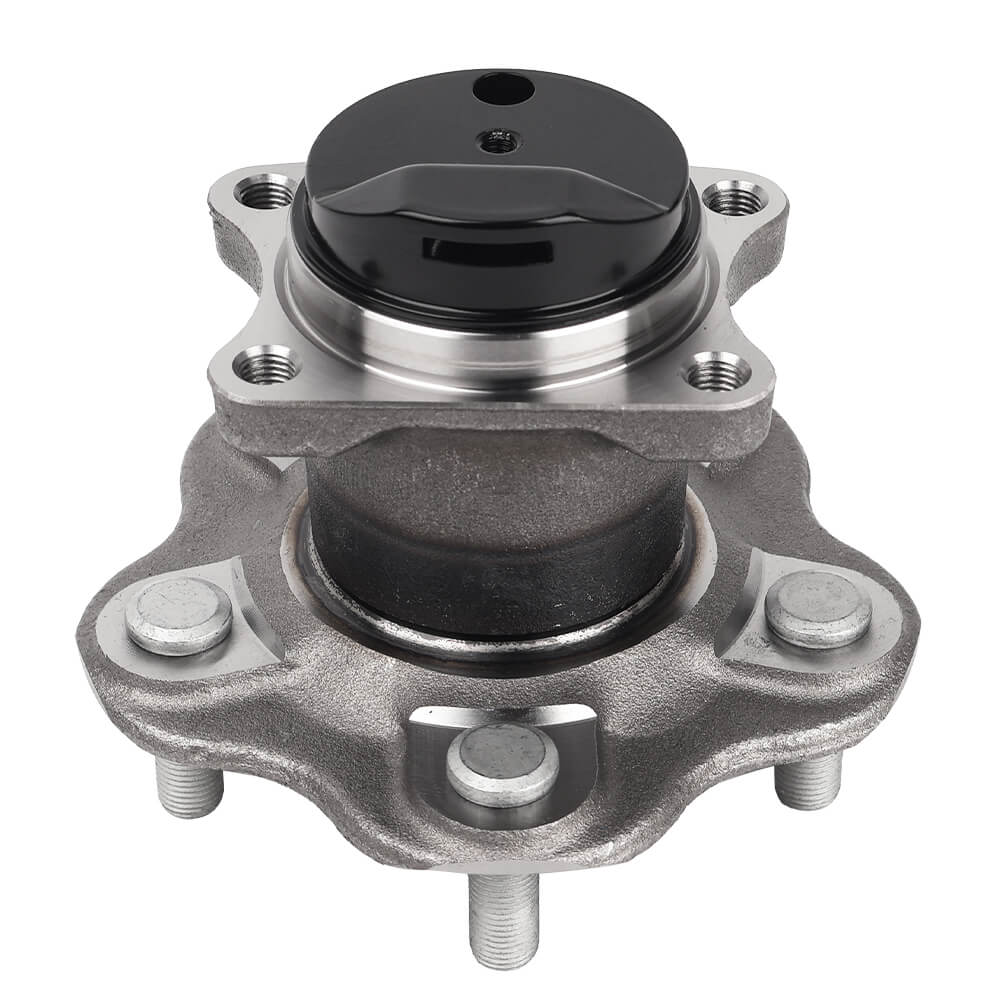

Rear 5-Lug ABS Wheel Hub Bearing Assembly for 2013-2019 Nissan Sentra All Models

Rear 5-Lug ABS Wheel Hub and Bearing Assembly

Rear wheel hub and bearing assembly for 2013–2019 Nissan Sentra models. The source identifies this version for all models within the listed years, with a 5-lug wheel pattern and ABS.

Critical fitment warning: This listing is for a rear, 5-lug, ABS application. The source does not specify left versus right interchange, package quantity, rear drum versus rear disc brakes, engine, transmission, trim-specific brake differences, production date, ABS connector details, or whether an ABS sensor and wire are included. Confirm the VIN, rear brake type, selected side, lug count, original hub reference, mounting pattern, connector if applicable, and package contents before ordering.

Vehicle Compatibility

• 2013–2019 Nissan Sentra — all models per source; rear, 5-lug, ABS

Not compatible or not confirmed: Other model years, front-axle use, non-5-lug configurations, non-ABS applications, or vehicles whose original brake configuration, dimensions, references, mounting pattern, and connector do not match.

Position and Configuration

• Axle position: Rear
• Wheel studs: 5-lug configuration
• Brake system: ABS application
• Side: Not specified; verify left/right interchange
• Quantity: Not specified; verify package contents
• Rear brake type: Drum/disc compatibility not provided

Reference Numbers

512530, 43202-3RA0A, 43202-4AF0A, 43202-9AM0A, 432023RA0A, 432024AF0A, 432029AM0A

Reference numbers are retained exactly as supplied, including hyphenated and non-hyphenated formats. A matching number alone does not override ABS, lug-count, brake-type, dimensional, mounting-pattern, production-date, or connector differences.

Included Components

• Rear wheel hub and bearing assembly

ABS sensor, sensor wire, wheel studs, mounting bolts, spindle or axle nut, seals, dust cap, backing plate, brake components, and other hardware are not separately confirmed by the source. Verify the product images and received package before installation.

Specifications Requiring Verification

The source does not provide flange diameter, flange offset, bolt-circle diameter, pilot bore, spindle or bearing-interface dimensions, wheel-stud thread, mounting-bolt pattern, connector pin count, or ABS-wire length. Compare the replacement with the original hub before installation.

Installation Notes

Wheel-hub service affects braking, wheel retention, ABS operation, alignment, and vehicle stability and should be performed by a qualified technician. Compare the new and original hub for ABS design, brake configuration, flange and pilot dimensions, mounting pattern, stud pattern, bearing interface, connector, and wire routing.

Inspect the spindle or carrier, rear brakes, ABS wiring, seals, and fasteners. Clean mating surfaces and follow Nissan procedures and torque specifications for hub hardware, brake components, and wheel nuts. After installation, verify bearing operation, wheel runout, ABS warning-light status, parking-brake operation, and brake function before road use.

Frequently Asked Questions

Does this fit every 2013–2019 Sentra trim?
The source states All Models, but the original 5-lug ABS hub, rear brake type, mounting pattern, and connector should still be verified.

Can it fit either rear side?
The source does not specify left/right interchange. Compare the original hub and mounting geometry before ordering.

Is the ABS sensor included?
The hub is specified for an ABS system, but sensor and wiring inclusion is not separately confirmed.

Does it fit rear drum and disc brakes?
The source does not state brake-type interchange. Verify the original rear brake and hub configuration.
