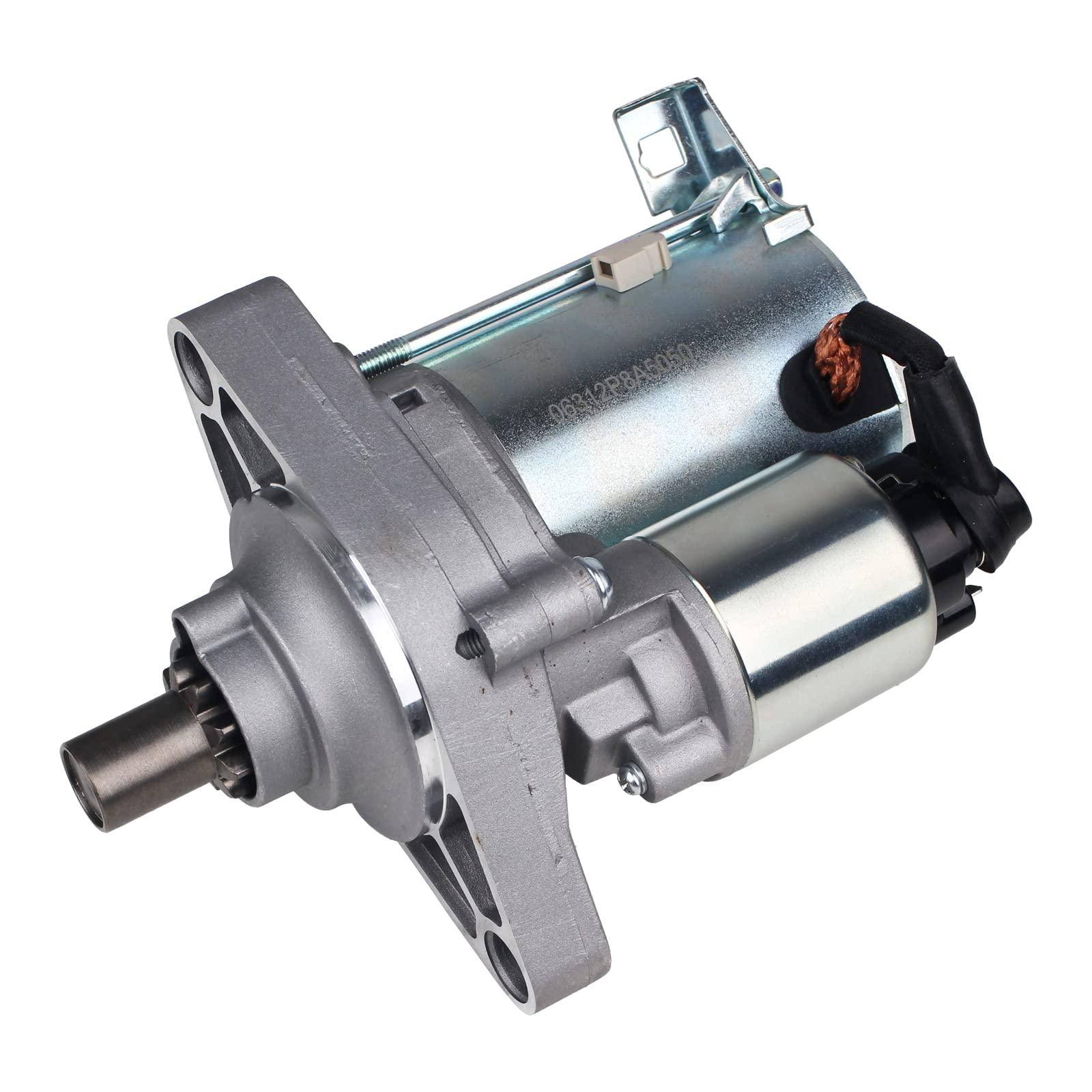

Starter Motor for 1998-2006 Acura CL MDX TL & 1998-2007 Honda Accord Odyssey Pilot V6

Starter Motor for Selected Acura and Honda V6 Applications

Replacement starter motor for the exact Acura CL, MDX, TL and Honda Accord, Odyssey, and Pilot V6 model-year and engine combinations listed below.

Critical fitment warning: Fitment is engine- and year-specific. Do not order by brand or broad year range alone. The source does not provide transmission type, engine code, production date, starter voltage, rated power, pinion tooth count, rotation, mounting pattern, nose design, solenoid position, terminal layout, or connector type. Confirm the VIN, exact engine displacement and code, transmission, production date, original starter reference, mounting geometry, pinion, rotation, and electrical connections before ordering.

Acura Compatibility

• 1998–1999 Acura CL — 3.0L V6
• 2001–2003 Acura CL — 3.2L V6
• 2001–2002 Acura MDX — 3.5L V6
• 1999–2006 Acura TL — 3.2L V6

Honda Compatibility

• 1998–2007 Honda Accord — 3.0L V6
• 1999–2006 Honda Odyssey — 3.5L V6
• 2003–2005 Honda Pilot — 3.5L V6

Not confirmed: Four-cylinder applications, other engine sizes, unlisted years, other Acura or Honda models, or vehicles whose original starter mounting, pinion, rotation, terminals, connector, and references do not match.

Reference Numbers

06312-P8A-5050, 06312-P8A-505RM, 06312-PGK-515RM, 06312-RKB-515, 06312-RKB-515RM, 06314-P8A-305RM, 31200-P0A-A01, 31200-P0G-A01, 31200-P0G-A01RM, 31200-P8A-A01, 31200-P8A-A01RM, 31200-P8E-A01, 31200-P8E-A01RM, 31200-P8E-A02, 31200-P8E-A02RM

Reference numbers are retained as supplied after removing unrelated formatting characters. A matching number alone does not override engine, transmission, production-date, mounting, pinion, rotation, or electrical differences.

Included Component

• 1 starter motor assembly

Mounting bolts, shims, wiring, terminal hardware, brackets, and other installation parts are not separately confirmed by the source. Verify the product images and received package before installation.

Specifications Requiring Verification

• Voltage and rated output
• Pinion tooth count and diameter
• Rotation direction
• Mounting-hole count and spacing
• Nose length and register diameter
• Solenoid clocking
• Main terminal and control-terminal layout
• Transmission compatibility

Installation Notes

Starter replacement involves high-current electrical connections and should be performed by a qualified technician. Disconnect the negative battery cable before service and follow the applicable Acura or Honda procedure. Compare the replacement with the original starter for mounting flange, pinion, nose depth, rotation, solenoid position, terminals, connectors, and heat-shield or bracket requirements.

Inspect battery condition, cables, grounds, fuses, relays, ignition or start-control circuits, and ring-gear teeth before replacing the starter. Clean and tighten all electrical and ground connections to specification. After installation, verify correct cranking engagement, release, charging-system operation, and the absence of abnormal noise or cable heating.

Frequently Asked Questions

Does this fit a four-cylinder Accord?
No four-cylinder application is confirmed. The listed Accord fitment is 3.0L V6 only.

Does it fit every 1998–2003 Acura CL?
No. The source lists 1998–1999 CL with 3.0L V6 and 2001–2003 CL with 3.2L V6; 2000 is not listed.

Does this fit every transmission?
The source does not state transmission compatibility. Verify the VIN and original starter configuration.

Are mounting bolts included?
Mounting bolts and additional hardware are not confirmed.
