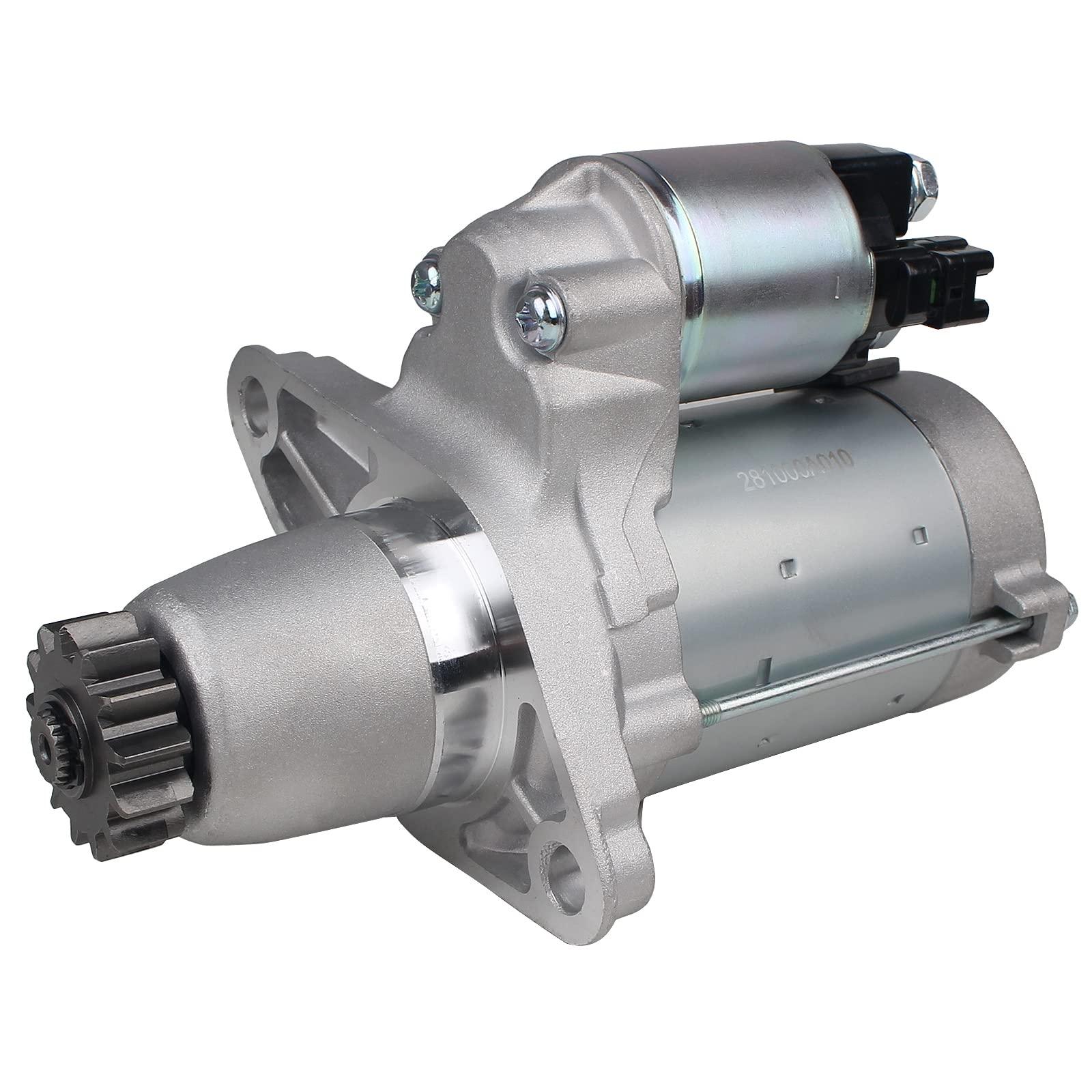

Starter Motor for Select 2002-2021 Lexus, Pontiac Vibe, Scion & Toyota Models

Starter Motor for Select Lexus, Pontiac, Scion, and Toyota Models

New replacement starter motor for the specific vehicle and model-year applications listed below.

Critical fitment warning: The source does not provide engine size or code, hybrid/non-hybrid restrictions, drivetrain, transmission, production-date breakpoints, starter output, pinion-tooth count, rotation direction, mounting pattern, or electrical-terminal configuration. Many listed models were offered with multiple powertrains. Do not order by model and year alone; confirm the VIN, engine code, original starter label and casting, mounting flange, pinion, terminals, and reference number.

Vehicle Compatibility

Lexus

• 2002–2003 Lexus ES300
• 2004–2006 Lexus ES330
• 2007–2018 Lexus ES350
• 2015–2017 Lexus NX200t
• 2018–2021 Lexus NX300
• 2004–2006 Lexus RX330
• 2007–2009 Lexus RX350

Pontiac

• 2009–2010 Pontiac Vibe

Scion

• 2005–2016 Scion tC
• 2008–2015 Scion xB

Toyota

• 2005–2018 Toyota Avalon
• 2002–2017 Toyota Camry
• 2009–2010 Toyota Corolla
• 2004–2019 Toyota Highlander
• 2009–2013 Toyota Matrix
• 2006–2018 Toyota RAV4
• 2003–2015 Toyota Sienna
• 2002–2008 Toyota Solara
• 2009–2016 Toyota Venza

Engine and powertrain fitment is not confirmed in the source. Hybrid applications and other special powertrains must not be assumed compatible without matching the original starter and VIN-based catalog data.

Reference Numbers

17825N, 16129, 19046, 19047, 19172, 1-17825, 1870761, 1870799, 19135606, 19205445, 19306539, 3362110A, SR3279X, SR3305X.

Reference numbers are provided for comparison. Match the original starter’s housing, mounting flange, bolt pattern, pinion, nose depth, solenoid orientation, electrical terminals, and vehicle application before ordering.

Specifications

The source identifies this item as a new starter motor but does not provide voltage, rated power, pinion-tooth count, rotation direction, number of mounting holes, nose-cone dimensions, or terminal clocking. Compare the physical configuration with the original unit.

Package Contents

One starter motor. The source does not confirm mounting bolts, wiring, terminals, shims, brackets, or other installation hardware.

Before Replacing the Starter

• Load-test the battery and confirm correct state of charge
• Inspect battery cables, grounds, terminals, relays, fuses, and control wiring
• Verify the engine turns freely and the ring gear is not damaged
• Check for voltage drop on the positive and ground circuits

Slow cranking, clicking, or a no-start condition can result from faults outside the starter motor.

Installation Notes

Professional diagnosis and installation are recommended. Disconnect the battery according to the applicable service procedure before removing electrical connections. Support the vehicle safely, clean and secure all cable and ground connections, and use the manufacturer’s torque specifications. Confirm pinion engagement and wiring clearance before operation. After installation, verify normal cranking, charging-system voltage, and that no cables or nearby components overheat.

Frequently Asked Questions

Does this fit every engine offered in the listed models?
Not confirmed. The source provides model-year ranges but no engine or powertrain details. Verify the VIN, engine code, original starter, and reference number.

Does it fit hybrid models?
Hybrid compatibility is not confirmed. Do not assume fitment without VIN-based verification and an exact match to the original unit.

Are mounting bolts included?
The source does not confirm bolts, shims, brackets, wiring, terminals, or other hardware.
