Timing Belt Kit with Water Pump, Tensioner & Seals for 2001-2005 Honda Civic

Timing Belt Kit with Water Pump for 2001–2005 Honda Civic

Timing-system and cooling-service kit containing a 104-tooth timing belt, water pump with gasket, tensioner bearing, seals, valve-cover gasket, spring, bolt, tube seals, and grommets.

Critical catalog and fitment warning: The product title and tags identify 2001–2005 Honda Civic, while the original source compatibility sentence also mentions 2006. No engine displacement, engine code, VIN digit, body style, trim, transmission, production date, or formal reference number is provided. Because the 2006 entry conflicts with the product’s stated range and the exact engine is missing, 2006 fitment is not claimed. Before ordering, confirm the VIN, engine code, original 104-tooth belt, water-pump design, tensioner, seal dimensions, valve-cover gasket shape, and complete kit layout.

Vehicle Compatibility

• 2001–2005 Honda Civic — exact engine restriction is not provided; VIN, engine-code, and original-part verification required

Not confirmed: 2006 Honda Civic, Civic Si, Civic Hybrid, GX/CNG, any particular engine displacement, or any configuration whose original belt tooth count, pump, tensioner, seals, and gasket do not match this kit.

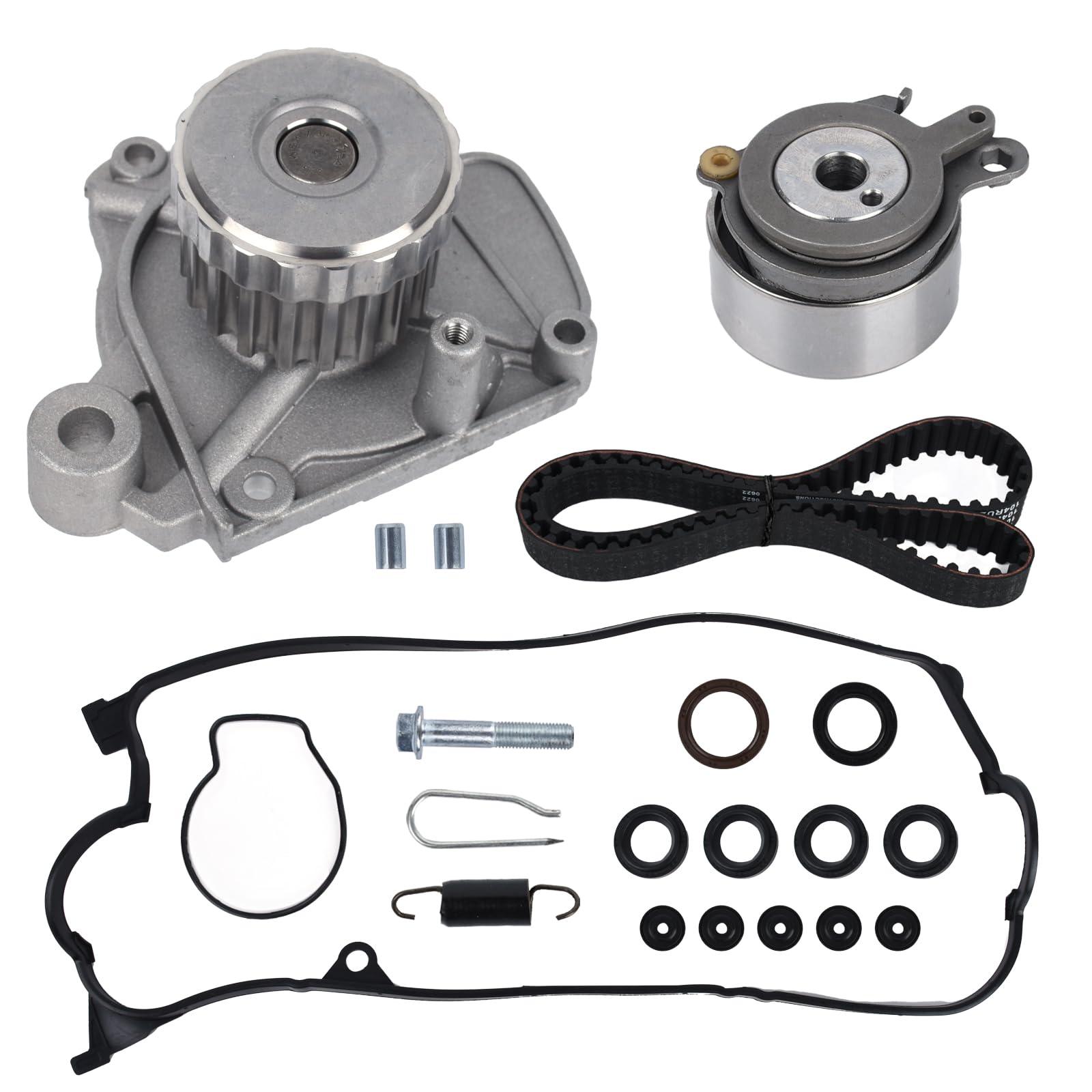

Confirmed Kit Contents

• 1 water pump with gasket
• 1 timing belt — 104 teeth
• 1 tensioner bearing
• 1 camshaft seal — 29 × 45 × 8
• 1 crankshaft seal — 38 × 50 × 7
• 1 valve-cover gasket
• 1 tensioner coil spring
• 1 mounting bolt
• 4 spark-plug tube seals
• 5 grommets

Seal measurement units are not stated in the source. Idler pulleys beyond the listed tensioner bearing, accessory belts, thermostat, coolant, sealant, additional fasteners, and installation tools are not confirmed as included.

Reference Information

No OE or replacement reference numbers are provided in the source description. The SKU is an inventory identifier and is not used as proof of engine fitment or an OE reference.

Installation Notes

Timing-belt and water-pump replacement is an advanced engine service and should be performed by a qualified technician. Obtain the exact Honda service procedure for the VIN and engine code before disassembly. Confirm timing marks, engine-rotation direction, belt routing, tensioning procedure, locking requirements, torque values, seal installation depths, and all one-time-use fasteners.

Drain and collect coolant safely before removing the water pump; do not reuse contaminated or unsuitable coolant. Thoroughly clean the pump mounting surface without damaging it, and inspect the camshaft and crankshaft seals, sprockets, tensioner components, cooling hoses, thermostat, and accessory belts. Install the new belt with all timing marks aligned, set tension exactly as specified, rotate the engine by hand through the prescribed number of revolutions, and recheck timing before starting. Refill with the vehicle-specified coolant, bleed air from the cooling system, then verify temperature control, coolant circulation, and the absence of leaks or abnormal noise.

Frequently Asked Questions

Does this fit a 2006 Honda Civic?
2006 appears in one source sentence but conflicts with the product title and tags, and no engine code is supplied. Fitment is therefore not claimed for 2006.

Which Civic engine does this kit fit?
The source does not specify the engine. Match the VIN, engine code, original 104-tooth timing belt, water pump, tensioner, seal dimensions, and gasket shape.

Is the water-pump gasket included?
Yes. The confirmed contents list one water pump with gasket.

Are coolant and accessory belts included?
No coolant or accessory belts are listed in the confirmed kit contents.
