9-Piece Timing Belt Kit with Water Pump for Acura, Honda & Saturn Applications

9-Piece Timing Belt Kit with Water Pump for Selected Acura, Honda, and Saturn Applications

Source-listed TKH002 timing-belt service kit with water pump, timing belt, accessory drive belt, pulleys, tensioner, and engine seals for the exact model-year applications below.

Critical fitment warning: Fitment is model-, year-, engine-, and production-specific. The source does not provide engine displacement or code, production-date breaks, transmission, emissions specification, or timing-system revision. Do not order by make and broad year range alone. Confirm the VIN, exact engine code, production date, original timing-belt dimensions and tooth count, water-pump design, pulley and tensioner shapes, accessory-belt routing and length, seal dimensions, and every reference number before ordering.

Acura Compatibility

• 2003–2013 Acura MDX
• 2013–2018 Acura RDX
• 2005–2012 Acura RL
• 2004–2014 Acura TL
• 2010–2014 Acura TSX
• 2010–2013 Acura ZDX

Honda Compatibility

• 2003–2017 Honda Accord
• 2010–2011 Honda Accord Crosstour
• 2012–2015 Honda Crosstour
• 2005–2017 Honda Odyssey
• 2005–2015 Honda Pilot
• 2006–2014 Honda Ridgeline

Saturn Compatibility

• 2004–2007 Saturn Vue

Not confirmed: Every engine offered within the listed model years, four-cylinder versus V6 interchange, hybrid or diesel applications, unlisted years or models, or vehicles whose original timing system, water pump, pulleys, tensioner, accessory belt, or seals differ.

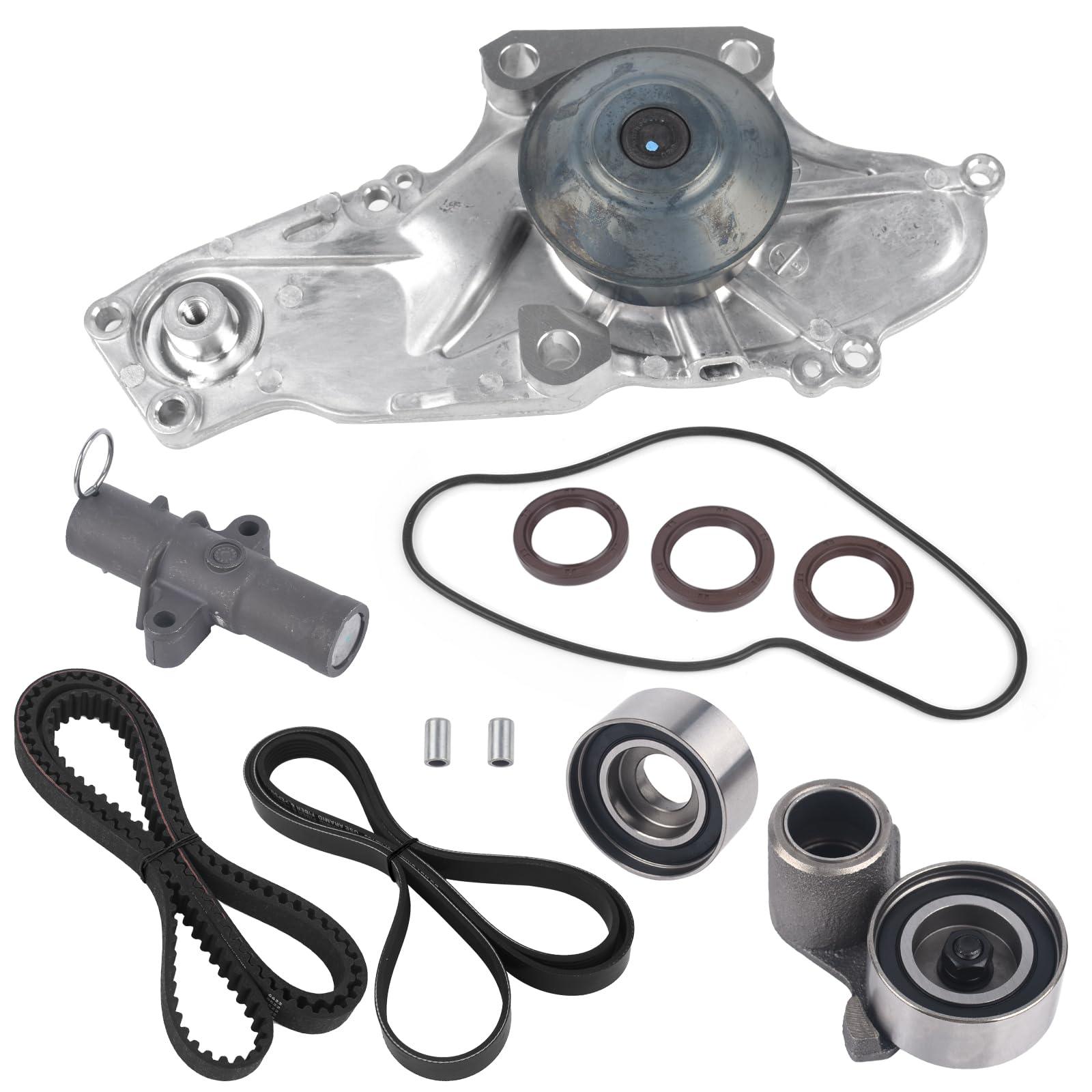

Package Contents

• 1 × Water pump with gasket — reference 19200-RDV-J01
• 1 × Timing belt — reference 14400-RCA-A01; 197 teeth × 20 mm
• 1 × Serpentine accessory drive belt — references 38920-RCA-A03, 6PK-2135
• 1 × Tensioner pulley — reference 14510-RCA-A01
• 1 × Idler pulley — reference 14550-RCA-A01
• 1 × Timing-belt tensioner — reference 14520-RCA-A01
• 2 × Camshaft seals — reference 91213-R70-A02
• 1 × Crankshaft seal — reference 91212-R70-A02

Total source-listed quantity: 9 pieces.

The source does not confirm thermostat, coolant, additional water-pump seals, timing covers, cover gaskets, crankshaft bolt, camshaft bolts, accessory-belt tensioner, additional pulleys, mounting hardware, or installation tools. Verify the product images and received package before disassembly.

Reference Numbers

TKH002, 19200-RDV-J01, 14400-RCA-A01, 38920-RCA-A03, 6PK-2135, 14510-RCA-A01, 14550-RCA-A01, 14520-RCA-A01, 91213-R70-A02, 91212-R70-A02

References are retained exactly as supplied. A matching number alone does not override engine, production-date, belt-routing, pulley, tensioner, water-pump, or seal differences.

Installation Notes

Timing-belt replacement is an internal-engine service requiring engine-specific timing procedures and tools. Installation should be performed by a qualified technician. Incorrect camshaft or crankshaft timing can cause severe engine damage.

Allow the engine to cool completely. Recover used coolant into a suitable container and dispose of or recycle it according to local requirements; do not reuse contaminated or deteriorated coolant. Before installing the water pump, clean rust, scale, old gasket material, and residue from the mating surface without damaging it or allowing debris into the cooling system.

Follow the VIN-specific procedure for engine positioning, timing marks, belt direction and tension, tensioner preparation and activation, pulley and water-pump torque, seal installation depth, accessory-belt routing, and required one-time-use fasteners. Do not contaminate belts with oil or coolant. Replace any leaking camshaft or crankshaft components that could shorten belt life.

After assembly, rotate the engine manually through the specified cycles and recheck all timing marks before startup. Refill with the vehicle-specified coolant, bleed the cooling system, inspect for leaks, verify belt tracking and tension, monitor engine temperature, and confirm normal operation.

Frequently Asked Questions

Is the water pump included?
Yes. The source lists one water pump with gasket, reference 19200-RDV-J01.

How many components are included?
Nine pieces are explicitly itemized, including two camshaft seals.

Does this fit every engine in the listed models?
The source does not identify engine sizes or codes. Verify the VIN, engine code, timing-belt dimensions, and all original components.

Is the accessory drive belt included?
Yes. One serpentine drive belt is listed under references 38920-RCA-A03 and 6PK-2135.
