Timing Belt Kit with Water Pump TKH002 for Honda Accord, Odyssey, Pilot, Ridgeline & Acura MDX, TL, RDX, 2003-2020 V6
Available in stock (20)
Timing Belt Kit with Water Pump TKH002 for Honda, Acura & Saturn
A complete timing belt kit with water pump for Honda, Acura and Saturn models, replacing kit TKH002. It includes the timing belt, water pump with gasket, tensioner, tensioner pulley, idler pulley, camshaft seals and crankshaft seal, so the full timing service can be done in one job. It is manufactured to OE specifications under ISO quality standards, with a die-cast aluminum water pump and a quiet, stable-running belt.

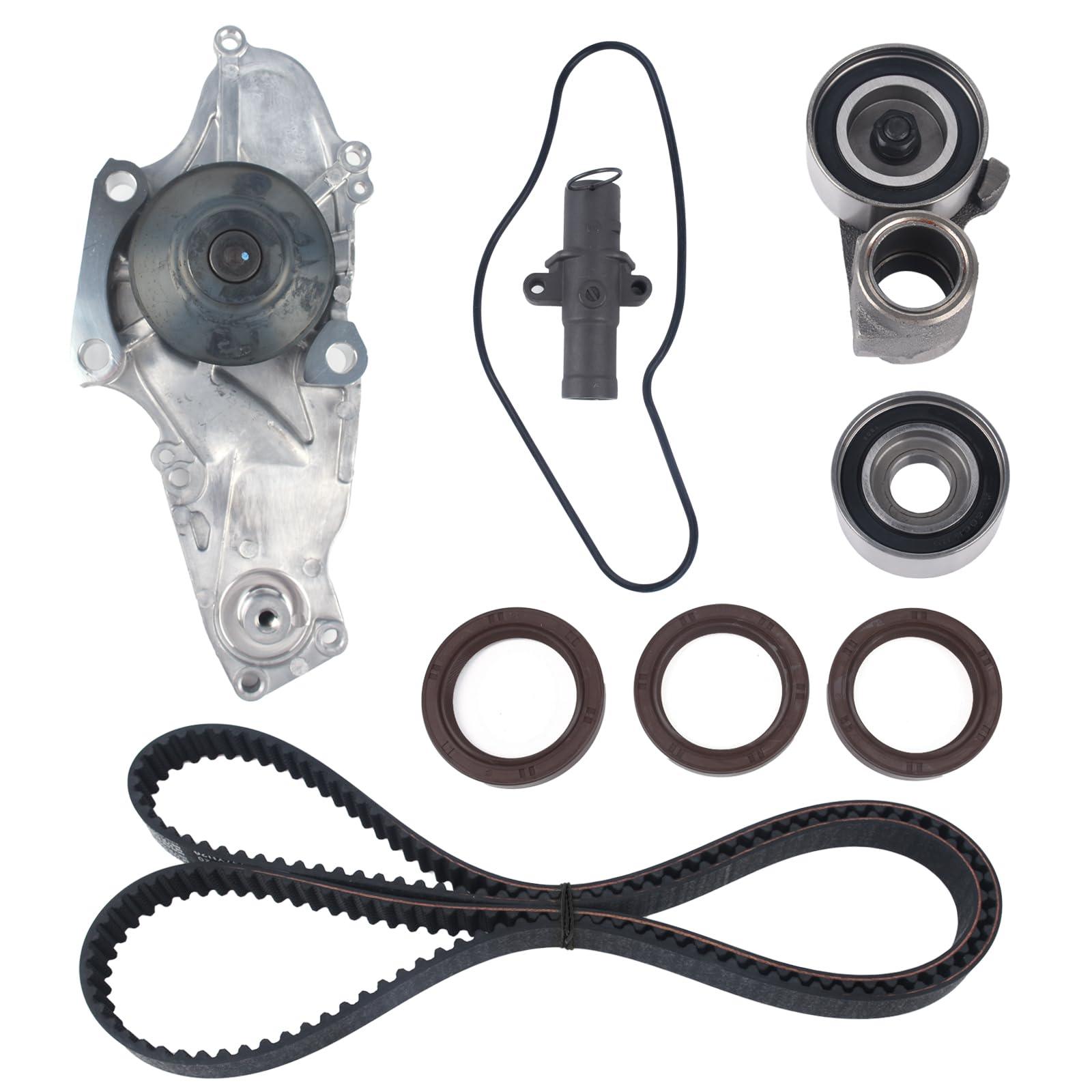

What's included
- 1 x water pump and gasket, 19200-RDM-A02
- 1 x timing belt, 14400-RCA-A01 (197 teeth, 20 mm wide)
- 1 x tensioner pulley, 14510-RCA-A01
- 1 x idler pulley, 14550-RCA-A01
- 1 x tensioner, 14520-RCA-A01
- 2 x camshaft seal, 91213-R70-A02
- 1 x crankshaft seal, 91212-R70-A02
Fitment
Acura
- MDX, 2003-2020
- RDX, 2013-2018
- RL, 2005-2012
- TL, 2004-2014
- TSX, 2010-2014
- ZDX, 2010-2013
Honda
- Accord, 2003-2017
- Accord Crosstour, 2010-2011
- Crosstour, 2012-2015
- Odyssey, 2005-2017
- Pilot, 2005-2015
- Ridgeline, 2006-2014
Saturn
- Vue, 2004-2007
Engine: For V6 engines with a timing belt. 4-cylinder models of the Accord, TSX, RDX, Crosstour and Vue use a timing chain and do not use this kit.
Confirm your engine and compare the part numbers above by VIN before ordering.
Specifications
- Kit number: TKH002
- Water pump: Die-cast aluminum, 19200-RDM-A02
- Timing belt: 197 teeth, 20 mm wide, 14400-RCA-A01
- Pieces: 8 (plus water pump gasket)
Installation
Professional installation is recommended.
- Drain the coolant before removing the water pump. Do not reuse the old coolant; dispose of it properly.
- Set the engine to its timing marks, then remove the old timing belt, tensioner, pulleys and water pump.
- Thoroughly clean the mounting surfaces and remove all rust and scale.
- Replace the camshaft and crankshaft seals, then install the new water pump with its gasket, the tensioner, pulleys and timing belt.
- Verify timing marks, refill and bleed the cooling system, and check for leaks. Replacing the drive belt at the same time is recommended.
FAQ
Is the water pump included? Yes. The kit includes the water pump and gasket.
Does it fit a 4-cylinder Accord? No. It is for V6 engines with a timing belt.
What is included besides the belt? The water pump, tensioner, tensioner pulley, idler pulley, two camshaft seals and a crankshaft seal.
