Timing Belt Kit with Water Pump TCK304 for Subaru Forester, Impreza, Legacy & Outback (2006-2012)
Available in stock (20)
Timing Belt Kit with Water Pump TCK304 for 2006-2012 Subaru
A complete timing belt kit with water pump, replacing kit TCK304 on select 2006-2012 Subaru Forester, Impreza, Legacy and Outback models. It includes the timing belt, water pump, tensioner, idler pulleys, idler sprocket and engine seals, so the full timing service can be done in one job. The kit is manufactured to OE specifications under ISO quality standards, with a die-cast aluminum water pump.

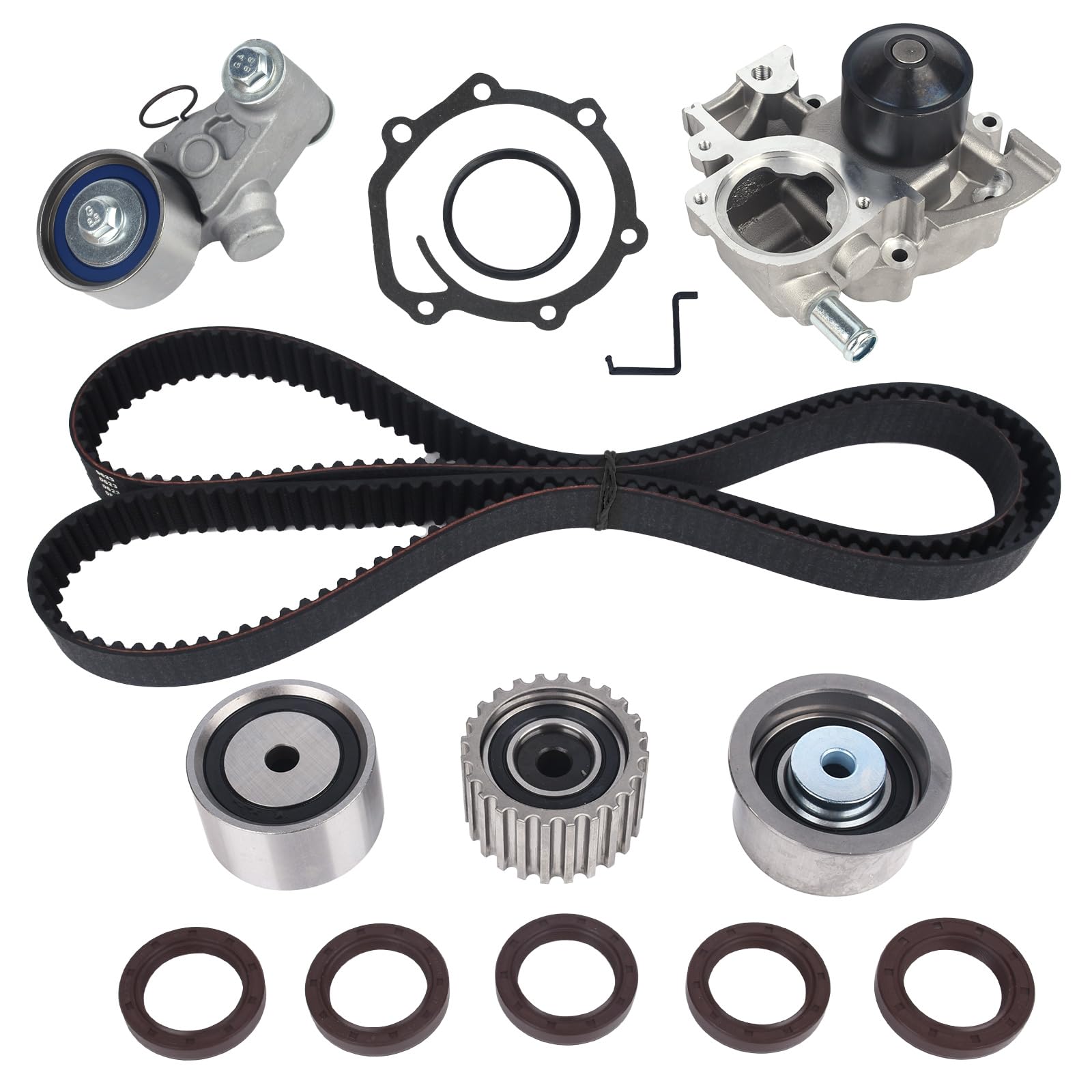

What's included
- 1 x timing belt (223 teeth)
- 1 x water pump with gasket and seal (1 outlet tube type)
- 1 x tensioner pulley
- 2 x idler pulley
- 1 x idler sprocket
- 4 x camshaft seal
- 1 x crankshaft seal
Fitment
- Subaru Forester, 2006 (manual transmission only) and 2007-2010
- Subaru Impreza, 2006-2011
- Subaru Legacy, 2010-2012
- Subaru Outback, 2006-2012
- Not for: the 2006 Forester with automatic transmission
The original listing does not specify engine. Timing kits differ between Subaru engines (for example turbo and non-turbo, or 4-cylinder and 6-cylinder). Confirm your engine by VIN and compare your original parts before ordering.
Specifications
- Part type: Timing belt kit with water pump
- Replaces kit: TCK304
- Water pump body: Die-cast aluminum
- Timing belt replaces: 13028AA231, 13028AA181, 13028AA230
- Water pump replaces: 21111AA280, 21114AA051, 21114AA020, 21114AA030, 21114AA050, 21116AA010
- Tensioner pulley replaces: 13033AA042, 13033AA000, 13033AA001, 13033AA002, 13033AA040, 13033AA041
- Idler pulley replaces: 13073AA190, 13073AA142, 13073AA082, 13073AA180
- Idler sprocket replaces: 13085AA080, 13085AA010, 13085AA070
- Camshaft seal replaces: 806732150, 806732050
- Crankshaft seal replaces: 806786040, 806786010, 806786020, 806786030
Installation
Professional installation is recommended.
- Drain the coolant before removing the water pump. Do not reuse old coolant; recycle it properly.
- Remove the old timing components and water pump, then thoroughly clean the mounting surfaces, removing all rust and scale.
- Install the new seals, water pump, tensioner, idlers and sprocket, then install the new timing belt with the timing marks correctly aligned.
- Refill with fresh coolant and bleed the cooling system. Replacing the accessory drive belt at the same time is also advisable.
FAQ
Is the water pump included? Yes, with its gasket and seal.
Does it fit a 2006 Forester automatic? No. For 2006, the Forester with manual transmission only.
Is coolant included? No. Coolant is not listed in the kit.
