Subaru BRZ / Toyota 86 GT86 FT86 / Scion FR-S Carbon Fiber Side Skirt Extensions

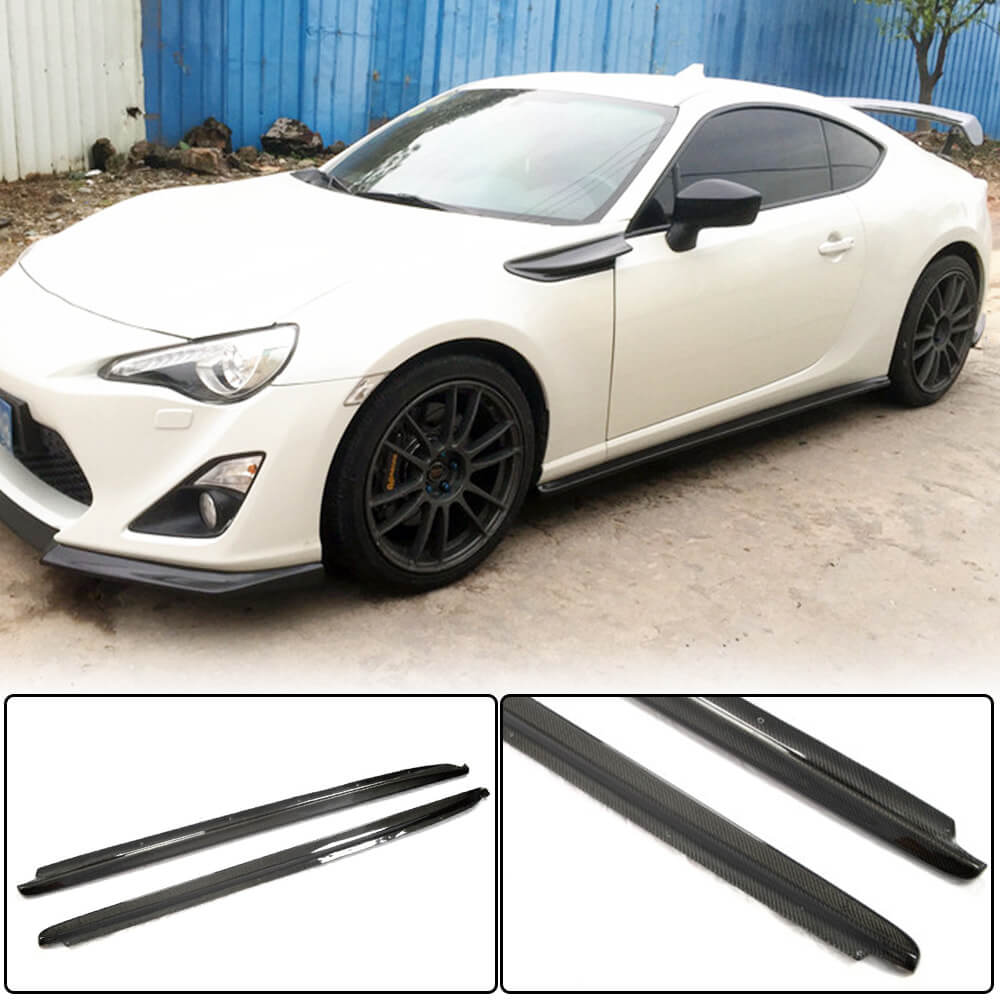

Carbon Fiber Side Skirt Extensions for Subaru BRZ / Toyota 86 / Scion FR-S

Add a defined gloss carbon-fiber line along the lower sides of your listed coupe. These extensions mount to compatible existing side skirts and can visually complement a carbon front lip or rear diffuser. They are add-on styling parts, not complete replacement rocker panels or structural sill assemblies.

Source-Listed Fitment

• Subaru BRZ Coupe: 2013–2020.
• Toyota 86 / GT86 / FT86 Coupe: 2016–2020.
• Scion FR-S Coupe: 2012–2016.

Keep these application ranges separate: the broader BRZ range does not automatically apply to Toyota or Scion. Confirm VIN, production date, regional model-year designation and the actual side-skirt profile before ordering. The combined lists are not verified trim-by-trim compatibility tables.

The detailed Toyota range starts at 2016, while the URL references 2017–2020 and the hidden Toyota filter entries begin at 2017. The detailed Scion range starts at 2012, while the hidden Scion entries begin at 2013. Toyota 2016 and Scion 2012 therefore require individual verification; these differences should not be silently resolved by changing the source years.

The source does not identify a required factory side-skirt package or provide separate fitment for every trim and special edition. Compare the full mounting footprint, lower sill contour and any existing skirt equipment. Shared platform ancestry does not establish identical mounting surfaces. Later-generation BRZ, GR86, other unlisted years, aftermarket skirts and converted bodywork are not confirmed applications.

Material and Finish

• 3×3 weave carbon fiber with glass-fiber composite reinforcement, as described in the source.
• High-gloss lacquer finish with hand and machine polishing.
• Double-layer UV-protected clear coating.

This is reinforced composite construction, not a claim of pure carbon fiber throughout. Dry-carbon processing, pre-impregnated cloth, laminate thickness, dimensions, measured component weight and quantified weight savings are not established. Permanent resistance to fading, scratches or discoloration is not promised.

Add-on Structure and Package Scope

The source explicitly describes extensions mounted to existing side skirts. Do not treat the rocker-panel wording as a replacement metal sill or complete original side-skirt assembly. Confirm the compatible existing skirt and attachment footprint before removing any original components.

Self-tapping screws are listed as included. Tape and adhesive are not specified as included. The source does not itemize exact panel count, left/right package coverage or screw quantities, so a two-piece pair is not confirmed by the supplied text. Front lip, rear diffuser, brackets and additional body panels are not specified as included.

Installation Guidance

Professional installation is recommended. Test-fit before drilling, altering original trim or tightening mounting hardware. Check alignment along the complete skirt, door movement, clearance near the wheels and compatibility with underbody panels. Do not force an extension onto a mismatched profile.

Because self-tapping screws are supplied, no-drill and no-modification installation are not guaranteed. Have the installer identify suitable attachment points, inspect behind proposed holes and verify the full fastening method. Do not assume original holes match all mounting locations or that tape alone can substitute for mechanical attachment.

Keep factory drainage, jacking points and service access unobstructed. These extensions are not steps, lifting points, structural reinforcement or impact guards. Check ground clearance over ramps, speed bumps and curbs, particularly on lowered vehicles. Confirm secure attachment before driving and recheck according to the installer's guidance. The original one-hour installation statement is not carried forward as a guaranteed fitting time.

Performance Scope

This product adds exterior styling to the lower side profile. No measured downforce, aerodynamic drag, handling or fuel-economy improvement is supplied.

Frequently Asked Questions

Are these replacement rocker panels?
No. The source describes extensions added to existing compatible side skirts.

Does one year range cover all three brands?
No. Separate source ranges are listed, and Toyota 2016 and Scion 2012 need additional verification.

Are these pure carbon or dry carbon?
The source describes carbon fiber reinforced with glass-fiber composite. Dry-carbon manufacture is not established.

Are screws and tape included?
Self-tapping screws are listed. Tape is not specified as included.

Are both sides included?
Exact piece count and left/right package coverage are not itemized. Confirm the package before ordering.
