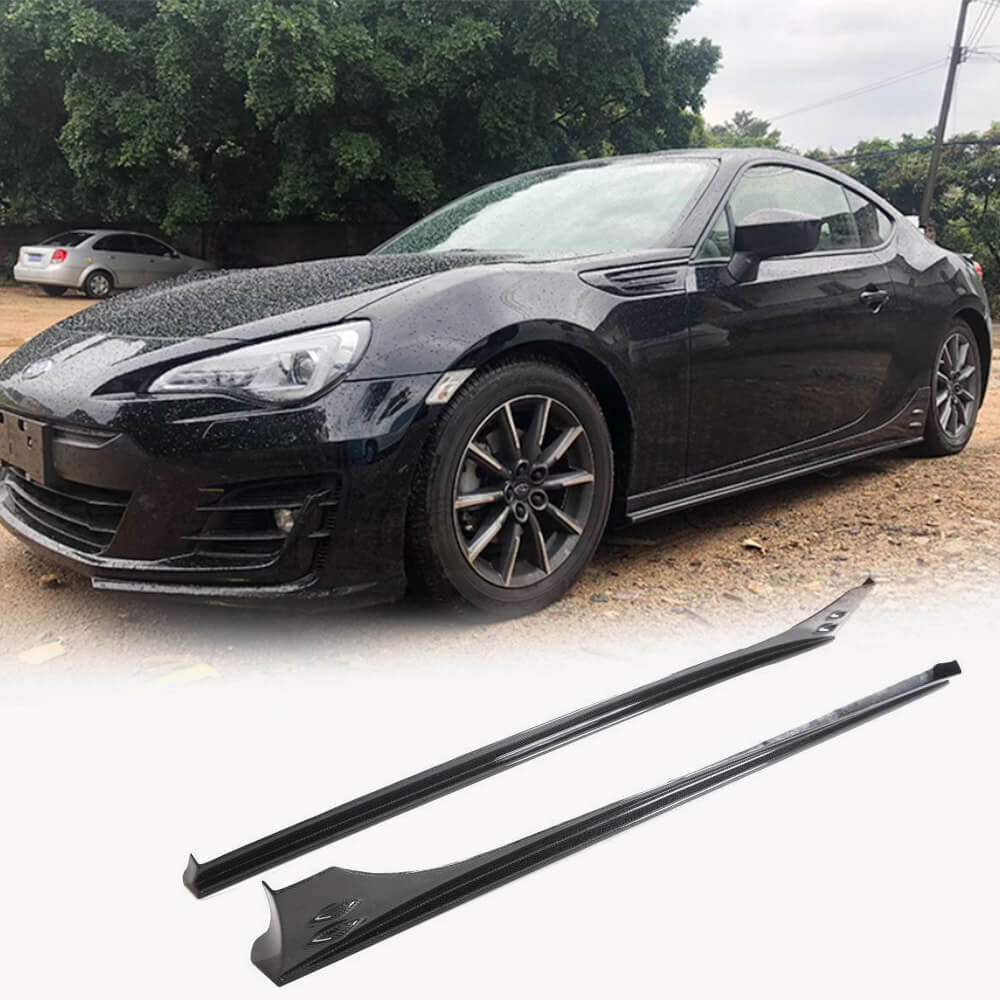

Carbon Fiber Side Skirts for 2013-2020 Toyota 86 / Subaru BRZ

Carbon Fiber Side Skirts for Toyota 86 and Subaru BRZ

Carbon-fiber side-skirt components for the source-listed 2013–2020 Toyota 86 and Subaru BRZ. The supplied installation information identifies tape and screws as included.

Critical fitment warning: Side-skirt and rocker-panel profiles can vary by model year, market, trim, special edition, factory aero package, facelift configuration, original side skirts, and previous body modifications. Confirm the VIN, exact Toyota 86 or Subaru BRZ model, model year, production date, original rocker-panel and side-skirt shape, mounting surface, wheelbase, front and rear terminations, and product dimensions before ordering.

Source-Listed Compatibility

• 2013–2020 Toyota 86
• 2013–2020 Subaru BRZ

Not confirmed: Scion FR-S, 2021 or newer vehicles, second-generation Toyota GR86, second-generation Subaru BRZ, vehicles with a different factory aero package, aftermarket rocker panels or side skirts, wide-body conversions, or modified wheel-arch and underbody panels.

The source combines 2013–2020 into one range but does not map pre-facelift, facelift, trim, special-edition, or market differences. Compare the full rocker profile and mounting points rather than relying on shared platform appearance.

Product Specifications

• Product type: Side-skirt extension / rocker-panel trim components
• Position: Left and right side area; exact piece layout not specified
• Material description: Carbon fiber
• Source-listed years: 2013–2020
• Installation materials: Tape and screws

The source writes “3×3 weave carbon fiber?” with a question mark. Therefore, the exact weave pattern, construction method, backing or core material, resin system, and full-carbon composition are not confirmed. Verify the visible weave, underside construction, edge finish, and physical material from the product images and received components.

The source does not provide exact dimensions, carbon layup schedule, finish thickness, finished product weight, paint code, aerodynamic data, downforce figures, wind-tunnel testing, or structural load rating. Surface appearance can vary with lighting and display settings.

Included Components

• Carbon-fiber side-skirt component set; exact piece count and left/right segmentation not specified
• Mounting tape
• Mounting screws

The plural product name supports side-skirt components but does not itemize the package or prove a specific number of pieces. The source does not separately confirm brackets, clips, nuts, washers, rivets, templates, adhesion promoter, primer, cleaning wipes, sealant, replacement underbody fasteners, or installation tools.

Installation Notes

Professional body-shop installation is recommended. Test-fit every component before drilling, trimming, refinishing, applying tape, or permanently fastening it. Confirm overall length, rocker contour, front-fender and rear-quarter transitions, door clearance, wheel and tire clearance, jacking-point access, underbody-panel interfaces, factory fastener locations, and left/right orientation.

The source includes tape and screws but does not establish whether the components replace the factory side skirts, mount underneath them, or attach as extensions. It also does not confirm factory-hole reuse, no-drill installation, no cutting, or no modification. Determine the mounting method from the physical components, product images, and vehicle before work begins.

Clean all adhesive surfaces using a product suitable for the vehicle finish and remove wax, oil, silicone, polish, dust, and residue. Follow the tape manufacturer's temperature, pressure, surface-preparation, and curing requirements. Do not bond over loose paint, damaged clear coat, contamination, or moisture.

Inspect behind each proposed screw location for wiring, fuel and brake lines, structural members, jacking reinforcements, drainage paths, and corrosion-protection layers. Use fasteners, backing support, sealing, and corrosion protection appropriate for the vehicle body and carbon component. Avoid over-tightening, which can crack or distort carbon parts.

After installation, confirm secure attachment, consistent panel gaps, full door operation, tire and suspension clearance, accessible lifting points, underbody-panel retention, and freedom from vibration or contact. Do not use the side-skirt components as lifting or stepping points. Reinspect all mounting points after the initial drive.

Frequently Asked Questions

Does this fit both Toyota 86 and Subaru BRZ?
Both models are source-listed for 2013–2020. Verify the exact year, trim, factory aero package, rocker profile, and mounting points.

Does it fit a Scion FR-S?
Scion FR-S is not included in the supplied fitment source, so compatibility is not confirmed.

Does it fit a Toyota GR86 or 2022+ Subaru BRZ?
No second-generation application is confirmed. The source range ends at 2020.

Is the material definitely 3×3 carbon fiber?
The source describes carbon fiber but places a question mark after “3×3 weave.” Confirm the weave and construction from the product images and received components.

How many pieces are included?
The source does not itemize the package count or component segmentation. Confirm from the product images and received parts.

Are tape and screws included?
Yes. Both are source-listed. Other brackets, clips, preparation materials, and hardware are not separately confirmed.

Is drilling required?
The source does not confirm factory-hole reuse or a no-drill installation. Complete a full test fit and inspect behind every proposed mounting point before modifying the vehicle.
