Timing Chain Kit with VCT Phasers & Solenoids for Ford 5.4L 3V — F-150 2004-2010, Expedition, F-250 / F-350 Super Duty, Lincoln Navigator & Mark LT

Timing Chain Kit with VCT Phasers for Ford & Lincoln 5.4L

A complete timing set for the 5.4L three-valve V8, supplied with everything the job normally needs in one box. These engines are known for the rattle on start-up that comes from worn cam phasers and stretched chains, and because the front of the engine has to come apart either way, replacing the chains, phasers, tensioners, guides and VCT solenoids together is the sensible repair. Fitting one worn component back into a fresh timing set is how the noise returns.

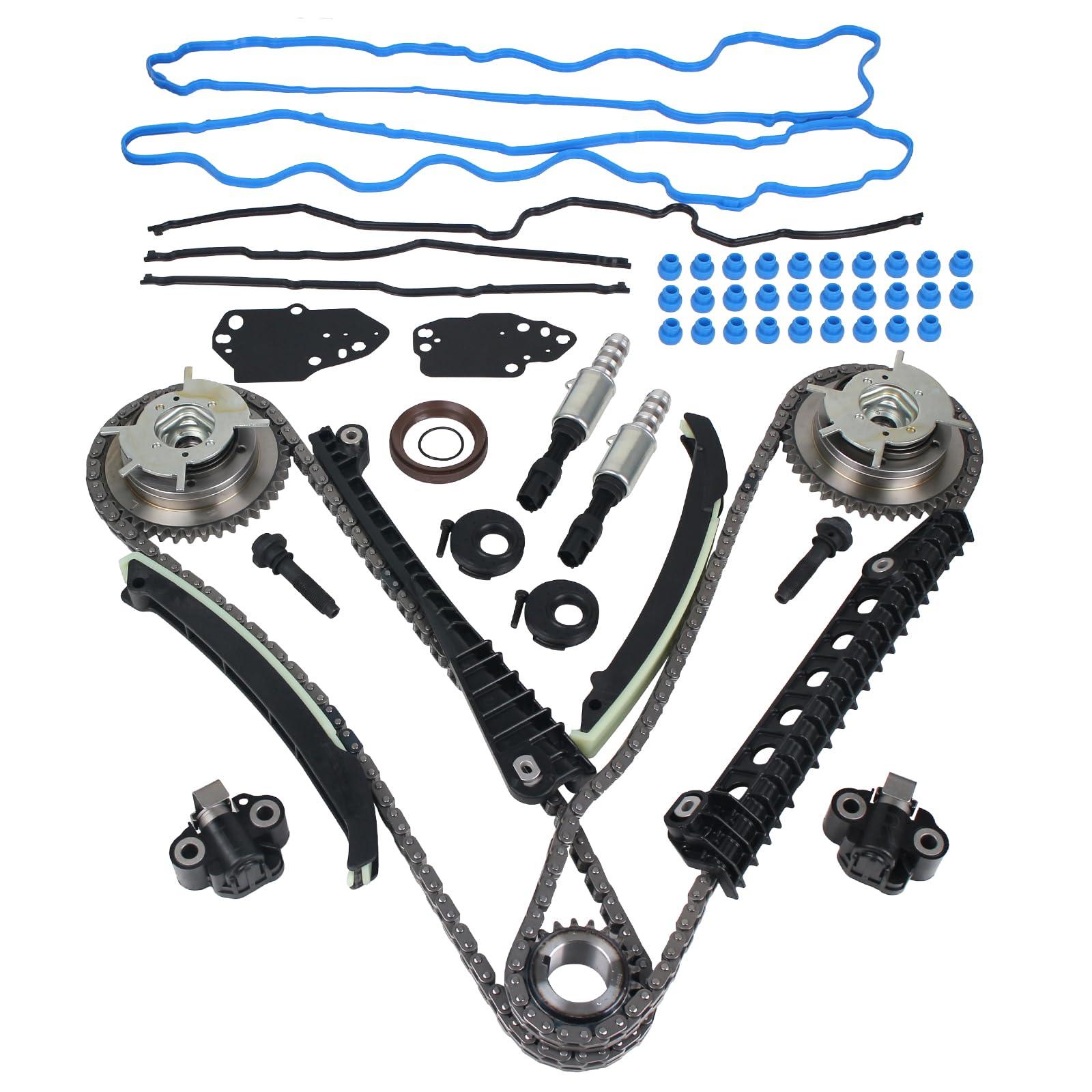

What's included

• 2x Timing chains
• 2x Camshaft phaser sprockets, with 2x mounting bolts
• 2x VCT variable camshaft timing solenoids / oil control valves, left and right, with 2x screws and 2x seals
• 2x Tensioners
• 2x Tensioner rail guides, left and right
• 2x Fixed rail guides, left and right
• 1x Crank gear, double row, one side recessed
• 2x Camshaft spacers
• 1x Timing cover seal set, timing cover gaskets and valve cover gaskets

Fitment

• Ford F-150 2004-2010, 5.4L
• Ford Expedition 2005-2014, 5.4L
• Ford F-250 Super Duty 2005-2010, 5.4L
• Ford F-350 Super Duty 2005-2010, 5.4L
• Lincoln Navigator 2005-2014, 5.4L
• Lincoln Mark LT 2006-2008, 5.4L
• Not for: 4.6L or 6.8L engines, two-valve 5.4L engines, or years outside those listed for each model

Engine size and year both matter here, and each model has its own range. Confirm your engine and year by VIN before ordering.

Installation notes

• This is a major engine repair and should be carried out by a qualified technician.
• Replace the full timing set rather than reusing worn chains, phasers or guides.
• Follow the factory service procedure for cam timing and torque specifications throughout.
• Use fresh oil and a new filter after the repair, as timing components are oil fed.

FAQ

What causes the start-up rattle on these engines? Typically worn cam phasers and a stretched timing chain, which this kit addresses together.

Are the VCT solenoids included? Yes, both left and right, with their seals and screws.

Are gaskets included? Yes, the timing cover seal set, timing cover gaskets and valve cover gaskets are all supplied.

Does it fit a 4.6L engine? No. This kit is for the 5.4L only.
