Front or Rear ABS Wheel Hub Bearing Assembly for 2013-2020 Ford Fusion & 2013-2016 Lincoln MKZ, 5-Lug

Front or Rear 5-Lug Wheel Hub and Bearing Assembly with ABS

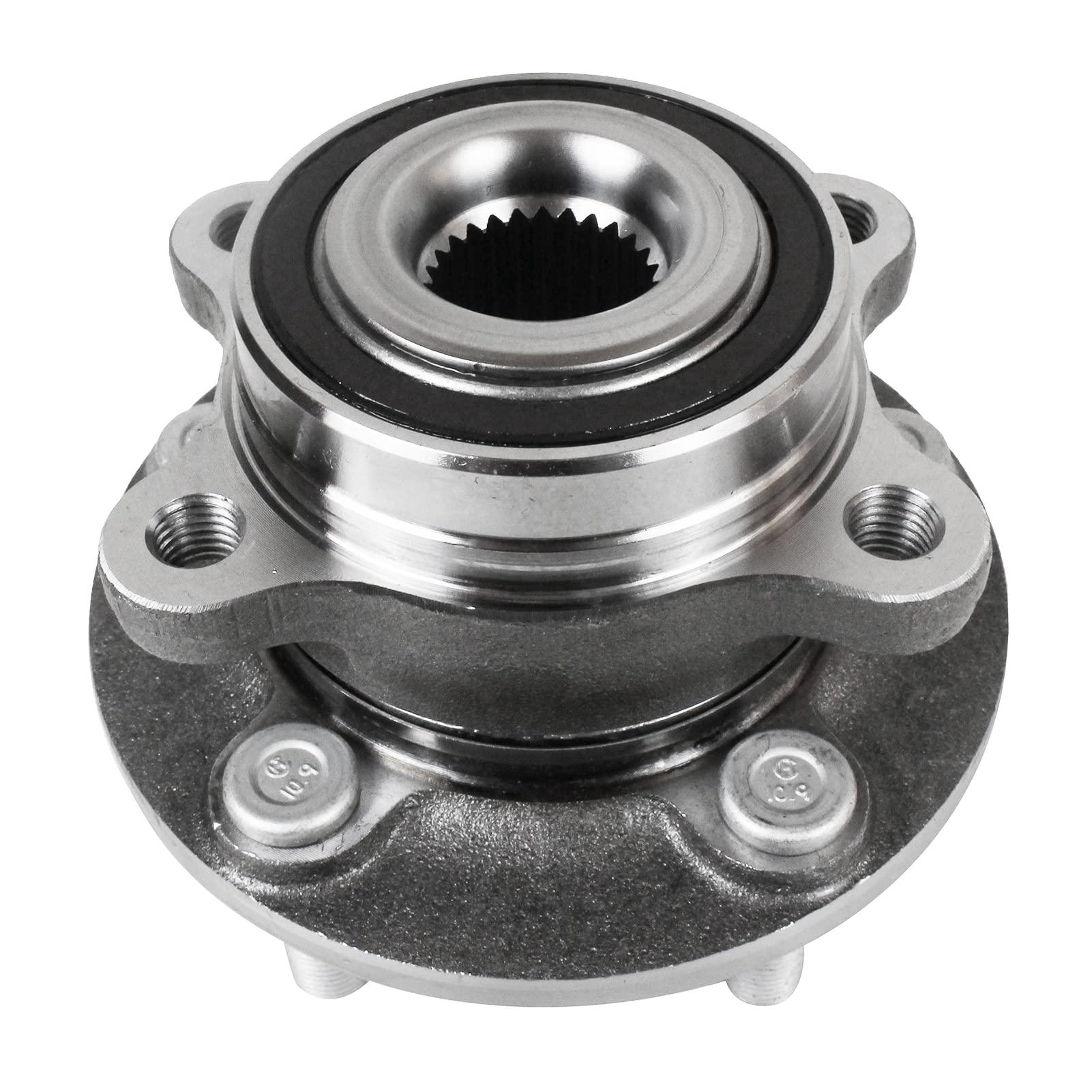

Wheel hub and bearing assembly for 2013–2020 Ford Fusion and 2013–2016 Lincoln MKZ applications. The source lists front or rear axle compatibility, a 5-lug configuration, and ABS.

Critical fitment warning: The previous title incorrectly started Ford Fusion coverage at 2003. The detailed source supports 2013–2020 Ford Fusion only. Do not order by model name alone. The source does not specify which vehicle configurations use this assembly at the front, rear, or both; it also does not state FWD versus AWD, gasoline versus Hybrid/Energi, engine, trim, production date, left versus right side, package quantity, spline count, ABS connector shape, sensor wire length, or mounting-bolt details. Confirm the VIN, drivetrain, powertrain, axle position, original reference number, side, 5-lug pattern, flange dimensions, splines, mounting points, ABS connector, and sensor configuration before ordering.

Vehicle Compatibility

• 2013–2020 Ford Fusion — front or rear axle according to the source; exact configuration requires verification
• 2013–2016 Lincoln MKZ — front or rear axle according to the source; exact configuration requires verification

Not confirmed: 2003–2012 Ford Fusion, other model years, or any drivetrain, powertrain, axle position, or configuration that does not match the original assembly.

Confirmed Specifications

• Axle position: Front or rear, depending on vehicle configuration
• ABS: ABS-compatible assembly
• Wheel studs: 5-lug configuration
• Flange diameter: 135.7 mm
• Flange offset: 47.9 mm
• Bolt-circle diameter: 4.24 in

Left/right interchangeability, package quantity, drivetrain, Hybrid/Energi coverage, spline count, wheel-stud thread, ABS connector, sensor wire length, mounting-bolt dimensions, and axle-nut specifications are not provided.

Reference Numbers

512498, HA590481, 1801428, BR930913

Reference numbers are provided for comparison. Match them together with the VIN, drivetrain, powertrain, axle position, side, lug pattern, flange dimensions, splines, mounting points, ABS connector, and sensor configuration.

Package Contents

The source identifies a wheel hub and bearing assembly but does not confirm package quantity, left/right interchangeability, or exact front/rear allocation by vehicle configuration. It also does not separately confirm the ABS sensor, harness, mounting bolts, axle nut, seals, or other hardware. Check the product images and package details before ordering; do not assume a pair.

Installation Notes

Wheel-bearing service affects steering, braking, ABS operation, and wheel retention. Professional installation is recommended. Confirm the required axle position and compare the replacement with the original assembly before installation. Inspect the knuckle or rear carrier, drive axle where applicable, splines, ABS wiring, brake components, and mounting surfaces. Compare the flange, offset, bolt circle, connector, wire routing, and mounting points. Follow vehicle-specific torque procedures for the axle nut where used, hub fasteners, brake components, and wheel nuts. After installation, verify wheel rotation, end play, ABS operation, brake operation, wheel-nut torque, and the absence of warning lights or abnormal noise.

Frequently Asked Questions

Does this fit a 2003–2012 Ford Fusion?
No such fitment is supported by the source. Ford Fusion coverage begins in 2013.

Is this for the front or rear?
The source lists front or rear axle compatibility but does not map the position to each drivetrain and powertrain configuration. Verify the VIN and original assembly.

Does this fit Hybrid or Energi models?
Hybrid/Energi coverage is not stated. Confirm the VIN, powertrain, axle position, reference, connector, and dimensions.

Is this a pair or confirmed for both sides?
Package quantity and left/right interchangeability are not confirmed. Check the images and compare the original assembly.
