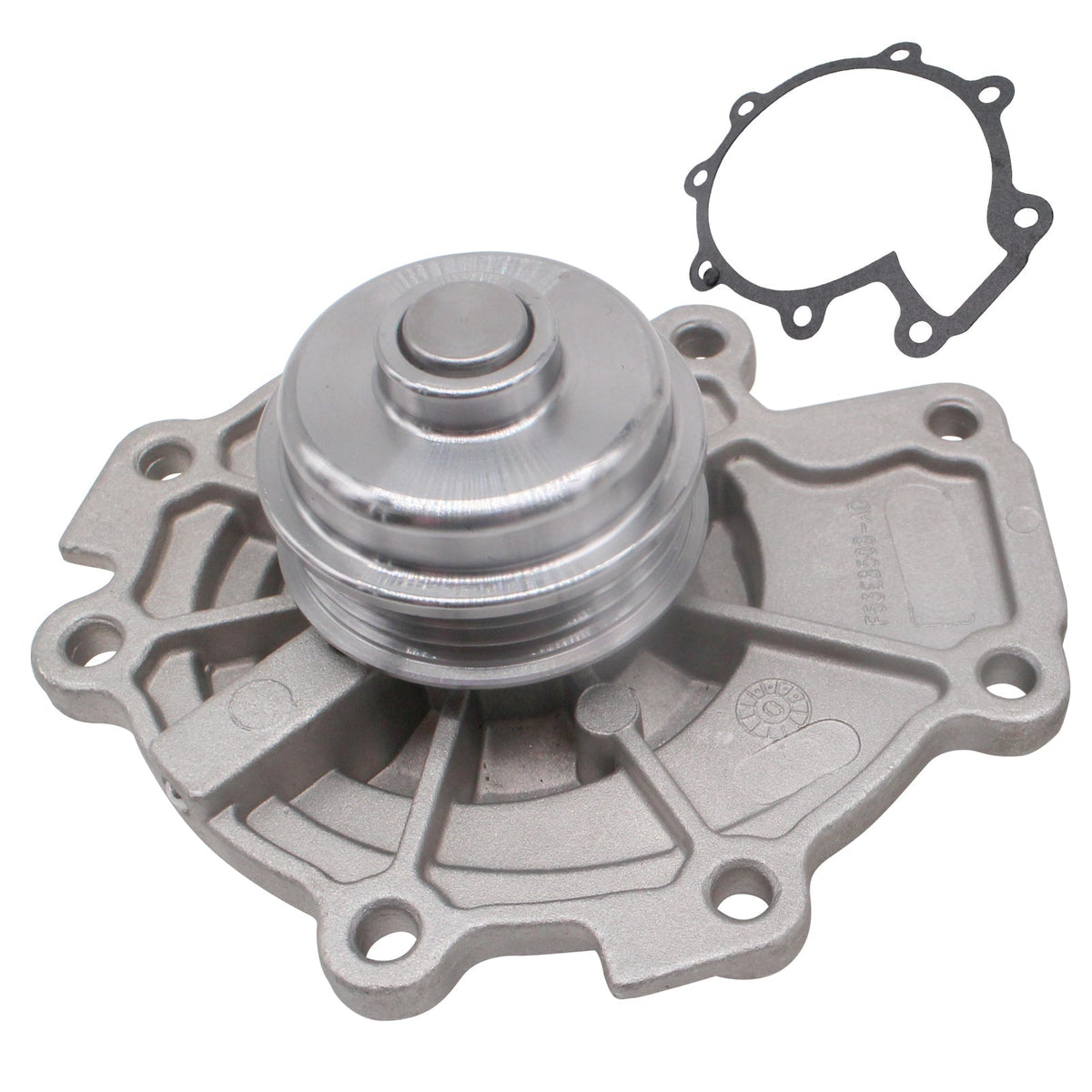

How to Replace a Water Pump (Belt-Driven Type)

Water pump replacement splits into two very different jobs depending on how the pump is driven. Belt-driven pumps on the front of the engine are a moderate job. Pumps driven by the timing belt or chain sit behind the timing cover and involve engine timing — a substantially bigger undertaking. Work out which you have before deciding whether to tackle it. First: Which Type Do You Have? Serpentine belt driven. The pump is visible at the front of the engine, driven by the accessory belt. Accessible with hand tools. This guide covers this type. Timing belt or chain driven. The pump sits behind the timing cover. Replacing it means removing the timing components and re-establishing engine timing precisely. Getting this wrong on an interference engine bends valves. If yours is timing-driven and you are not experienced with timing work, this is a job for a shop. If it is timing-belt driven and the belt is due, replace both together — the labour overlaps almost entirely, and doing them separately means paying twice. Before You Start Work on a completely cool engine. The cooling system is pressurised when hot, and coolant above its atmospheric boiling point flashes to steam violently when released. This causes serious burns. Let it sit for several hours. Tools: socket set, torque wrench, drain pan, scraper or gasket removal tool, belt tensioner tool, and new coolant of the correct specification. Buy the right coolant. Types are not interchangeable — mixing incompatible formulations can cause gelling and accelerated corrosion. Check the specification for your engine. Plan to replace the thermostat at the same time if it is accessible while you are in there. The labour is often already done. Step 1: Drain the Coolant Place a drain pan under the radiator drain. Open the radiator cap or expansion tank cap to let the system vent, then open the drain. Some engines also have a block drain. Check whether yours does. Collect the old coolant properly. It is toxic and its sweet smell attracts animals — do not leave it in an open pan or pour it on the ground. Dispose of it at a facility that accepts it. Step 2: Gain Access Remove whatever stands between you and the pump. Commonly this means the engine cover, air intake ducting, cooling fan and shroud, and sometimes the radiator itself. On tight engine bays you may also need to remove an alternator or bracket. Step 3: Remove the Belt Photograph the belt routing first. Release the automatic tensioner with a breaker bar or belt tool, slip the belt off, and let the tensioner return slowly. Inspect the belt, tensioner and idler pulleys while they are exposed. Replace a worn belt now rather than revisiting the job. Step 4: Remove the Pump Pulley and Pump Remove the pulley bolts if your pump has a separate pulley. It helps to loosen these slightly while the belt is still on and holding the pulley from turning. Remove the pump mounting bolts, noting their positions — they are frequently different lengths, and fitting a long bolt into a short hole can crack the housing or bottom out against a coolant passage. Work the pump free. Corrosion often bonds it to the block. Tap gently around the flange with a soft-faced hammer rather than prying against the sealing surface. Expect more coolant to come out when the pump releases. Step 5: Clean the Sealing Surface This step determines whether the job leaks. Remove every trace of old gasket material from the block. Use a plastic scraper or a gasket removal tool. Aggressive scraping with a steel blade gouges aluminium, and any gouge becomes a leak path. The surface must be completely clean, dry and free of oil. Keep debris out of the coolant passage — stuff a clean rag in the opening while scraping, and remember to remove it. Step 6: Fit the New Pump Check the new pump against the old one: impeller type, mounting hole pattern, pulley flange, inlet and outlet positions. Fit the new gasket or O-ring. Some pumps use a paper or rubber gasket, others an O-ring, and some require a bead of sealant. Follow what the pump specifies — using sealant where an O-ring design does not call for it can cause a leak rather than prevent one. If sealant is specified, apply a thin, even bead. More is not better; excess sealant squeezes into the coolant passages and can block them. Position the pump and start all bolts by hand. Torque the bolts in a cross pattern, in stages, to the specified figure. Uneven or excessive torque distorts the housing and causes leaks. Refit the pulley and torque those bolts. Step 7: Reassemble Refit the belt according to your photo, confirming it is seated correctly in every pulley groove. Refit the fan, shroud, radiator and intake components you removed. Step 8: Fill and Bleed the Cooling System Air trapped in the system causes overheating even with a perfectly good new pump. Bleeding properly matters. Close the drain and fill slowly with the correct coolant mixture. Locate the bleed screw if your engine has one, and open it while filling until coolant flows without bubbles. With the cap off, start the engine and let it idle, topping up as the level drops. Run the heater on full hot to circulate coolant through the heater core. Let it reach operating temperature so the thermostat opens — you will usually see the level drop noticeably at that moment. Keep topping up until the level stabilises, then fit the cap. Let it cool completely, then check the level again and top up. Repeat after the first drive. Some vehicles require a specific bleeding procedure or a vacuum filling tool. Check yours — engines with complex coolant routing trap air stubbornly. Step 9: Verify Watch the temperature gauge through a full warm-up cycle. It should stabilise and stay stable. Confirm the heater blows hot — weak heat is a classic sign of trapped air. Check underneath for leaks, and check again after the first proper drive. Recheck the coolant level the next morning when cold. Common Mistakes Working on a hot engine. Causes serious burns. Gouging the sealing surface with a metal scraper. Too much sealant. Blocks passages. Uneven bolt torque. Distorts the housing and leaks. Not bleeding the system. Causes overheating that gets blamed on the new pump. Mixing coolant types. Not replacing the thermostat while it is accessible. Before You Order the Part Water pumps vary by engine, not just by vehicle model — the same car can use different pumps depending on displacement and production date. Confirm whether a gasket or O-ring is included, and whether your engine uses a gasket, an O-ring or sealant. Match the fitment chart to your exact engine and year. Order coolant, and consider a thermostat and gasket at the same time.
